Removing wheel electronics

Precondition

Tire is uninstalled from the wheel rim.

NOTE: TECHNICAL INFORMATION
Before working with the special tool (RDC tool) for the first time, the web-based training "RDC tool" should have been completed successfully once. For this purpose, the web-based training "RDC tool" must be started in your Learning Management System (TMSi).

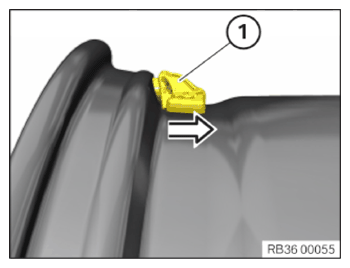

Loosen union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the wheel electronics with the valve insert (1) from the bore in the wheel rim.

Courtesy of BMW OF NORTH AMERICA, INC.
