Remounting the heated steering wheel button
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

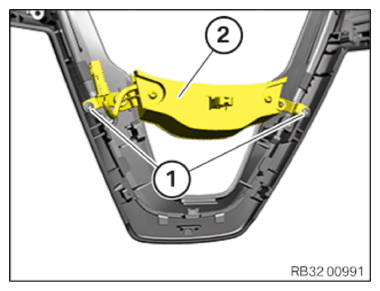

- Loosen screws (1) .
- Remove the button for the heated steering wheel (2) .
- Position the button for the steering wheel heating (2) on the new cover.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Steering wheel heating button to the decorative trim/cover | |
|---|---|
| tightening torque | 2 Nm |
