Installing the steering shaft seal

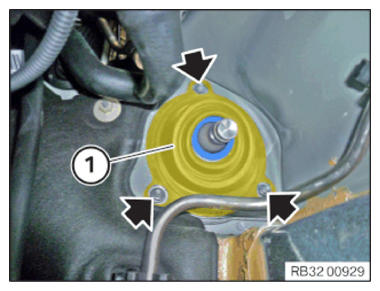

• Slide the steering shaft seal (1) onto the steering column and position.
• Tighten the nuts (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FOR REUSING: RECUT THE SCREW THREAD .
• Refer to INSTALLING STEERING SHAFT, BOTTOM .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to CHECKING THE AIRBAG FOR FUNCTION .
• Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
