Measuring vehicle ride height

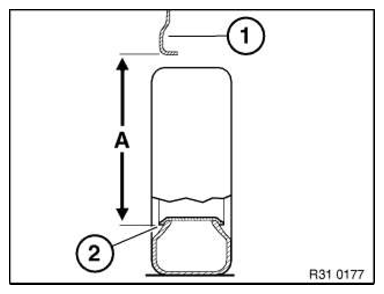

- Determine ride height (A): For this purpose, attach the tape measure centrally on the rim flange (2) and measure towards the wheel arch lower edge (1).
- Load or unload the vehicle to keep the ride height within the prescribed tolerances.
TECHNICAL DATA SPECIFICATION
| Ride height with vehicle load tolerance | |
| Minimum value | min. - 20 mm |
| Maximum value | max. + 40 mm |
