Install the vibration absorber on the rear axle support

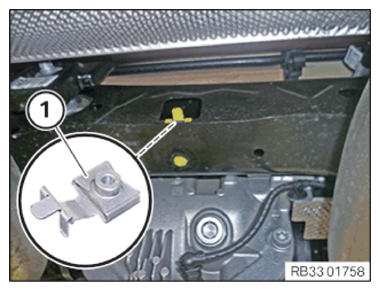

Replace the clip nut (1).
Parts: Clip nut

Courtesy of BMW OF NORTH AMERICA, INC.
Position the vibration absorber (2) correctly.
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Vibration absorber on rear axle support
M12 Replace the screw and clip nut.	tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

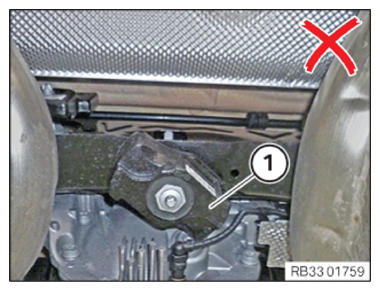

Check the position of the vibration absorber (1), correct if necessary.
The vibration absorber (1) must not be twisted.

Courtesy of BMW OF NORTH AMERICA, INC.
