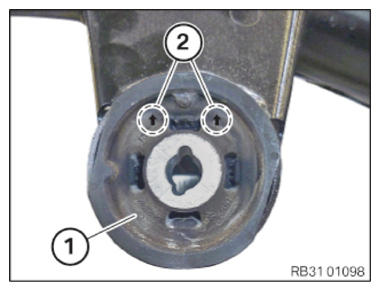

Noting the installation position of the front rubber mount in relation to the rear axle support
- Observe the installation position of the rubber mount (1)
in the rear axle support.
Arrows (2) on the rubber mount point vertically upwards.
TECHNICAL DATA SPECIFICATIONPosition of the rubber mount in the rear axle support If necessary, place a mark on the outer area of the rubber mount to check the installation position. Permissible rotation -7°... +7°
