Installing the magnet of the seat-position sensor on the front seat

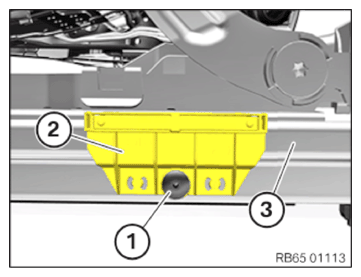

• Guide in magnet (2)  of the seat-position sensor on seat mechanism (3)  and position it correctly.
• Fasten the rivet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT SEAT .
