Removing the seat-position sensor on the front seat

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Release cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.

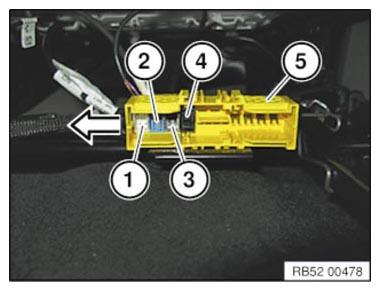

Unlock the connectors in the sequence (1) to (4) and pull one after the other out of the connector housing (5) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the cable bracket (1) from the seat mechanism,
If applicable, unclip the other cable brackets.
Put the cable (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Drill out the rivet (1).
Guide the seat-position sensor (2) upward from the seat mechanism (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
