Install the seat position sensor on the front seat

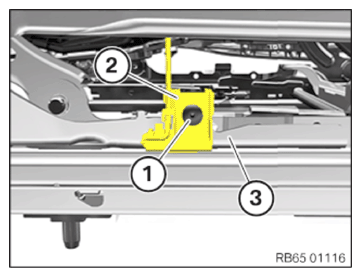

• Feed in and correctly position the seat position sensor (2) from above on the seat mechanism (3).
• Fasten the rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

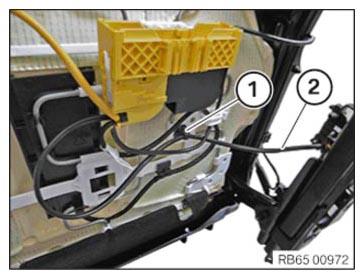

• Correctly position the cable (2).
• Fasten the cable bracket (1) on the seat mechanism.
• If applicable, fasten the other cable brackets.

  Courtesy of BMW OF NORTH AMERICA, INC.

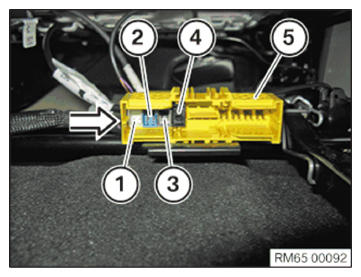

• Correctly insert the connectors in the sequence (1) to (4) in the arrow direction into the connector housing (5) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

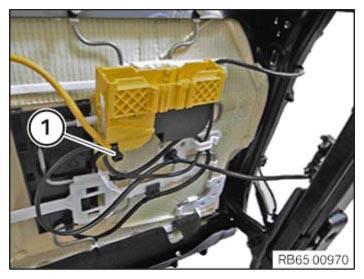

• Secure cable tie (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT SEAT .
