Installing the rear tweeter

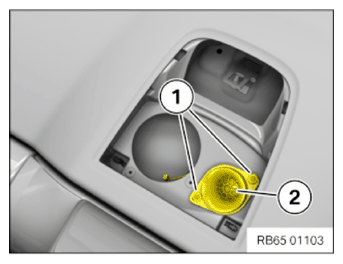

- Feed in the tweeter (2) with the cable and position correctly.
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Speaker to rear shelf/support/head restraint Screw Tightening torque 1.8 Nm
Follow-up work
- Refer to INSTALLING THE REAR MID-RANGE SPEAKER .
