Installing mid-range speaker at the rear of the side trim panel
NOTE:

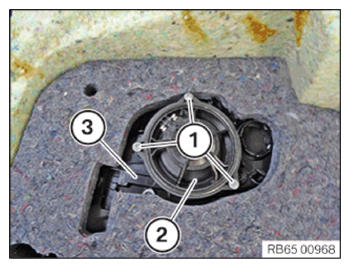

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Insert the mid-range speaker (2) into the side panel (3) and position it correctly.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Loudspeaker on the door/trim panel Screw tightening torque 2 Nm - If necessary, position the acoustic fleece correctly.
Follow-up work
- Refer to INSTALLING REAR TRIM PANEL .
- Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
