65 13 Audio System Speakers
>>
65 13 066 Replace front speaker holder
>>
Remove the tweeter from the speaker holder
Remove the tweeter from the speaker holder

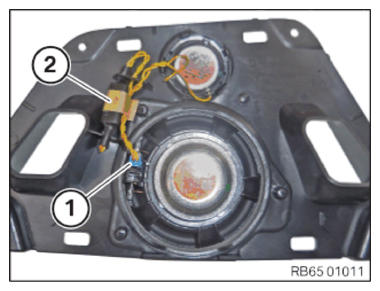

Disconnect the plug connection (1).
Remove the resistor (2).
Courtesy of BMW OF NORTH AMERICA, INC.

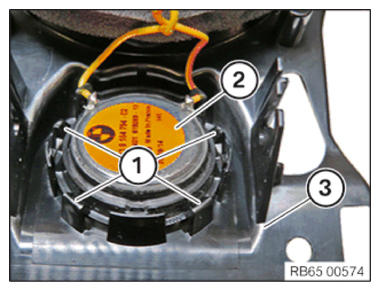

Loosen the detents (1).
Remove the tweeter (2) from the speaker holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.
