Install the speaker holder on the dashboard

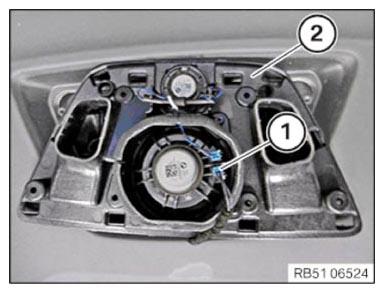

• Position the speaker holder (2).
• Connect plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

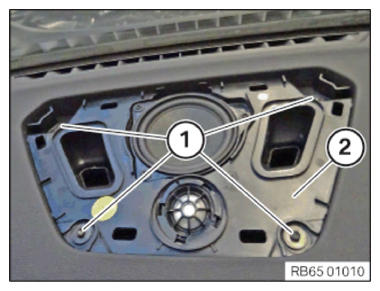

• Install the speaker holder (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Loudspeaker to support/support to dashboard/support to body
  screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
