Remove the mid-range speaker from the dashboard

Preliminary work

• Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .

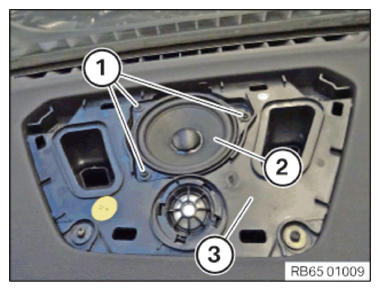

• Loosen screws (1).
• Lift the mid-range speaker (2) off the speaker holder (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

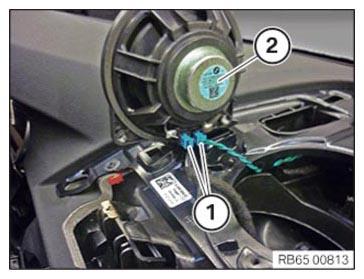

• Disconnect the plug connections (1) and remove the mid-range speaker (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
