Installing the tweeter in the mirror triangle

Check

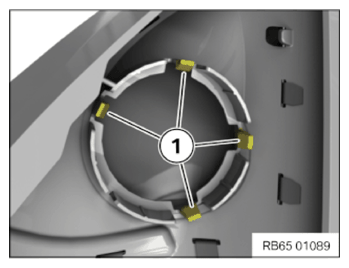

• Check the detents (1) on the mirror triangle for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Detents (1) are damaged.

  Measure

  • Replace the mirror triangle.
• Insert tweeter (1) and clip in at detents (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the foam part (2).
• Clip in the resistor (1) with the cable into the foam part (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE MIRROR TRIANGLE .
• Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
