12 41 041 Replacing the engagement solenoid switch

Switch off ignition.
Remove starter motor.

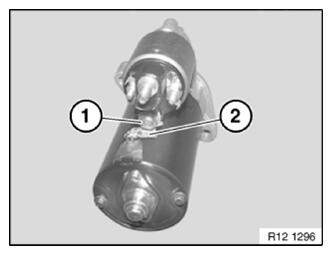

Slacken nut (1).

Remove cable head (2).

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not twist cable head (2) when tightening, risk of short circuit to starter motor housing.

Tightening torque 12 41 1AZ .

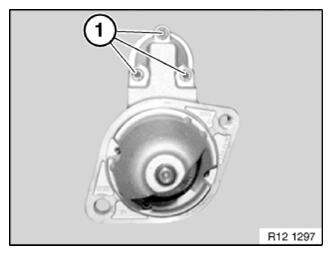

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

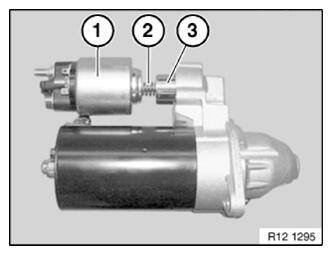

Remove the solenoid switch (1) and the spring (2).

Detach the bolt (3).

Installation note:

Check the bolt (3) for wear and grease the bolt.

Courtesy of BMW OF NORTH AMERICA, INC.
