12 41 Starter Motor
>>
12 41 020 Removing and installing/replacing starter motor (230i)
>>
Replace starter
Replace starter

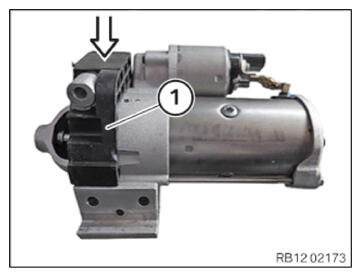

Remove the noise damping plug
(1)
in the arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Replace starter motor.
Parts:
Starter motor
Install the noise damping plug
(1)
in the arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
