Removing starter motor

WARNING: Working on 12 V electrical system .
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .

Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

Preliminary work

Refer to DEACTIVATING ELECTRICAL SYSTEM .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THRUST FIELD .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

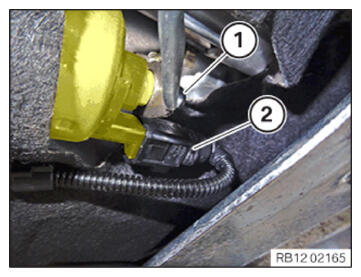

Loosen nut (1).
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

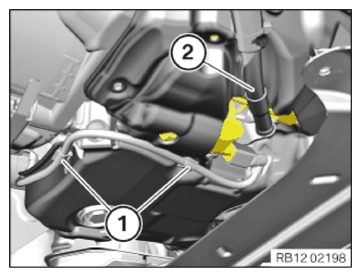

Loosen clamps (1).
Thread out positive battery cable (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

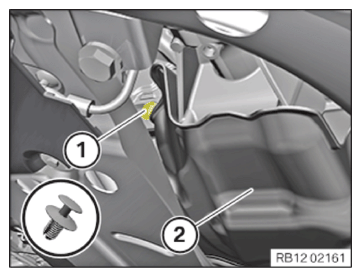

Release the expanding rivet (1) from the acoustic cover (2) for the oil pan.

Courtesy of BMW OF NORTH AMERICA, INC.

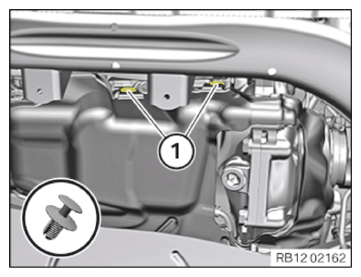

Loosen the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

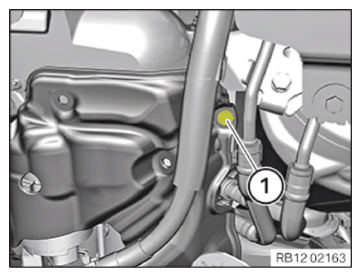

Undo fir tree clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

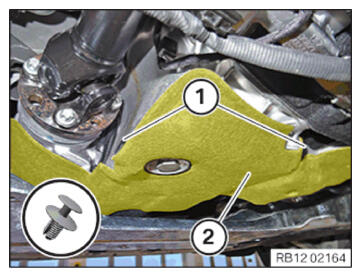

Loosen the expanding rivet (1).
Detach the acoustic cover (2) for the oil pan and set aside downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

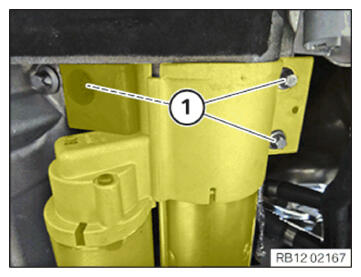

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

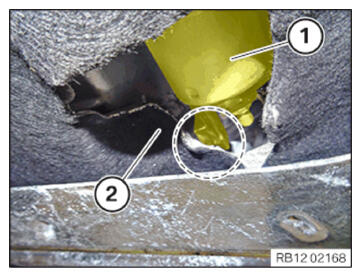

Position the starter motor (1) carefully in the marked area above the acoustic cover (2) as shown.
Removal is not possible without positioning the starter motor.

Courtesy of BMW OF NORTH AMERICA, INC.

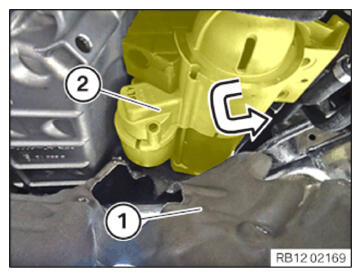

Make sure that the acoustic cover (1) is not damaged .
Carefully fold the acoustic cover (1) down.
Feed out the starter motor (2) carefully in arrow direction to the rear and downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

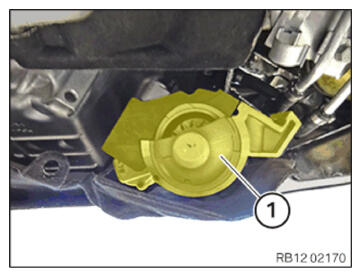

Remove starter (1).

Courtesy of BMW OF NORTH AMERICA, INC.
