Installing starter motor

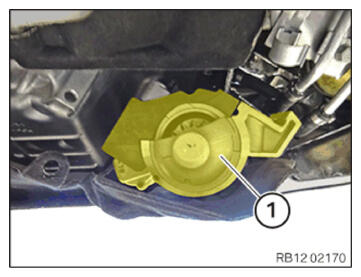

• Guide in the starter motor (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

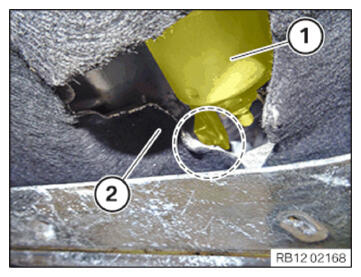

• Carefully position starter motor (1) over the acoustic cover (2) in the marked area as shown.

  Installation is not possible without positioning the starter motor  .

  Courtesy of BMW OF NORTH AMERICA, INC.

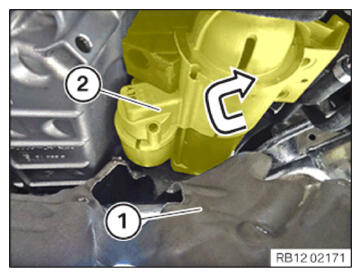

• Make sure that the acoustic cover (1) is not damaged  .
• Fold the acoustic cover (1) carefully  downwards.
• Install and position the starter motor (2) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

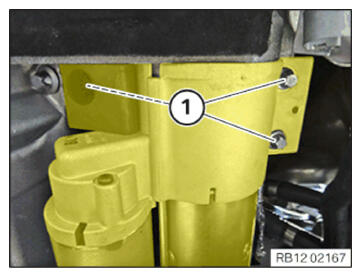

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Starter motor to engine
  M8X60	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

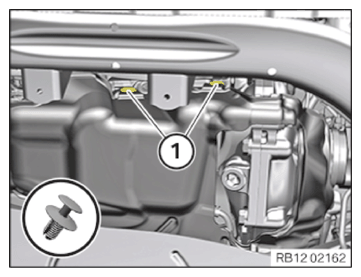

• Position the acoustic cover (2).
• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

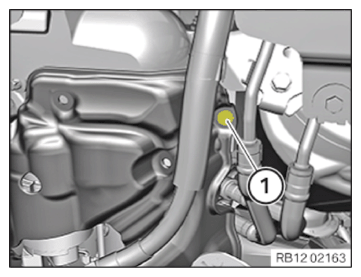

• Secure fir tree clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

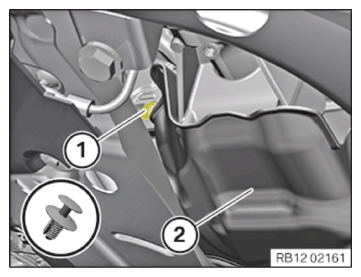

• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

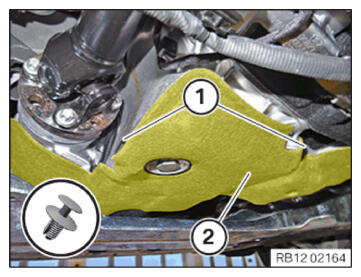

• Attach the expanding rivet (1) onto the acoustic cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

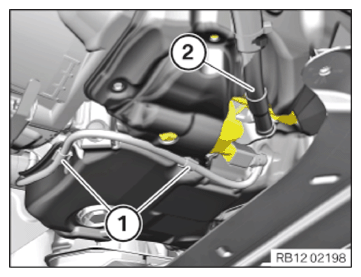

• Insert and position the positive battery cable (2).
• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

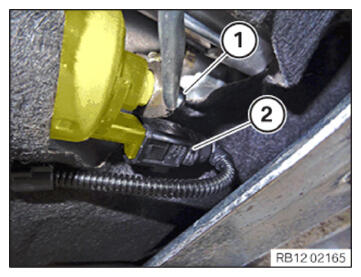

• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

• Tighten the nut (1) hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Improper routing of the positive battery cable  .
  Risk of short circuits!

  • Route the positive battery cable without abrasions and do not trap.

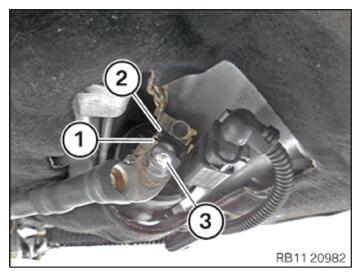

• Attach the positive battery cable (1) correctly  to anti-twist lock (2).
• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  M8	Tightening torque	13.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
