Install ignition coil

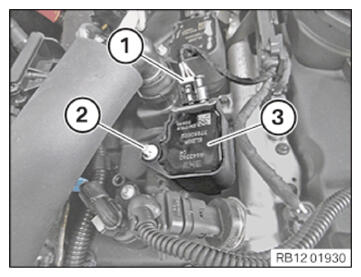

• Install ignition coil (3).
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Ignition coil
  screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

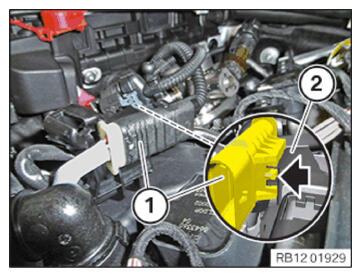

• Connect the connector (1) with the holder (2) and lock (arrow).

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to WHEN WORKING ON THE LAST CYLINDER: MOUNTING THE SERVICE OPENING IN THE SOUND INSULATION ON TOP OF THE ENGINE .
• Refer to INSTALLING ACOUSTIC COVER .
