Installing the ventilation grille in the rear

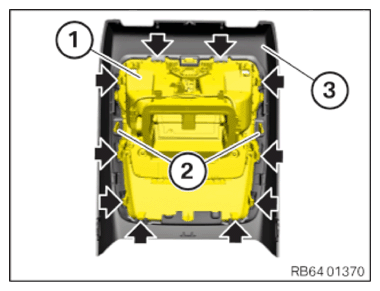

• Feed in the ventilation grille (1)  with the guides (2)  in the decorative strip (3)  .
• Engage the detents (arrows) on the decorative strip (3)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
