Installing the left ventilation grille

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

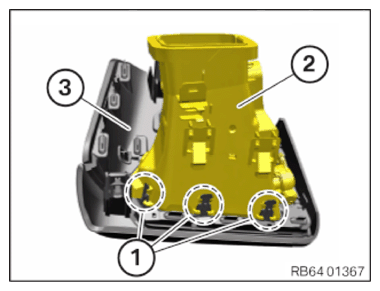

Place the ventilation grille (2) on the decorative strip (3) and position it correctly.
Engage the detents (1) onto the ventilation grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

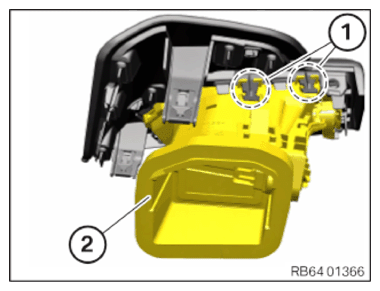

Engage the detents (1) onto the ventilation grille (2).

G14665177

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
