Installing the air conditioning control unit

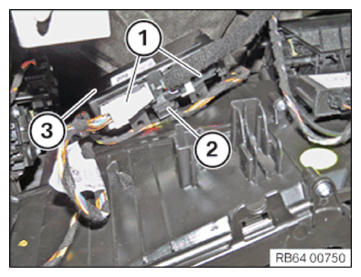

- Position the control unit (3) correctly and push it upwards until the detent (2) locks.
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
