Remove the rear seat footwell temperature sensor (B512)

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to REMOVING FRONT SEAT .
• Refer to REMOVING THE SPEAKER TRIM FOR THE CENTRAL BASS .
• Refer to REMOVING DOOR SILL COVER STRIP, INTERIOR RIGHT .

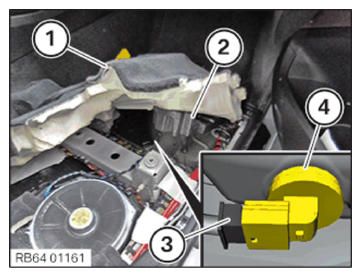

• Raise the carpet (1)  .
• Raise the insert in the front footwell (2)  .
• Disconnect plug connection (3)  .
• Rotate the rear seat footwell temperature sensor (4)  upwards and clockwise and remove.
