Installing the left air distribution flap motor (M21b)

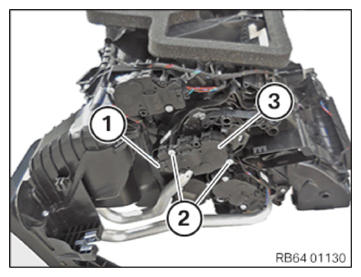

• Position the left air distribution flap motor (3).
• Tighten screws (2).
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT AIR DUCT .
• Refer to VEHICLES WITH AIRBAG MODULE: INSTALLING KNEE AIRBAG .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to ADDRESSING THE CONTROLLER DRIVE .
