Installing the air conditioning control panel for the rear

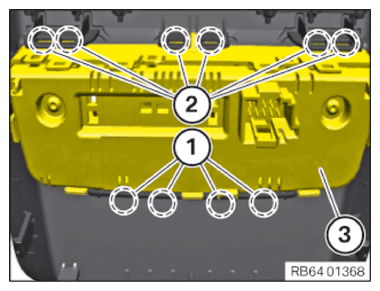

Set down the air conditioning control panel (3) on the decorative strip and position correctly.
Click detents (1) and (2) into place.

G14664995

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
