Removing the center ventilation grille with integrated air conditioning control panel
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .

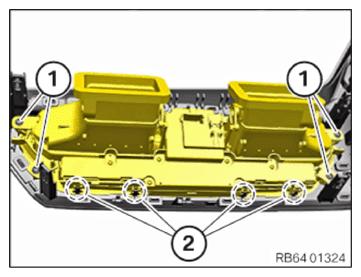

- Loosen screws (1).
- Disengage detents (2).

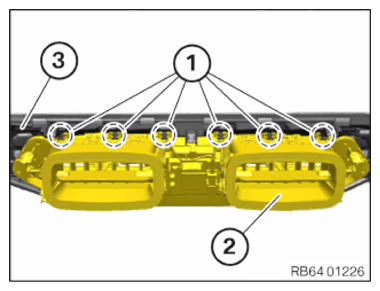

- Disengage the detent (1) on the ventilation grille (2).
- Remove the ventilation grille (2) with the integrated air conditioning control panel from the decorative strip (3).
