51 13 403 Replacing handle strip (on trunk lid)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove handle strip, refer to REMOVING AND INSTALLING HANDLE STRIP (ON TRUNK LID) .
When replaced, the button comes In Individual parts because the panel must be painted In the relevant car color.
Lever out light strip (1) on left/right from opening (2) and remove.
Remove light bulb (3).
Remove seal (1) from handle strip (2).
NOTE:
During removal, do not damage catches (1) of panel (2).
Carefully lever panel (2) with special tool 00 9 322 (plastic wedge) out of handle strip (3) and remove.
Installation:
Catches (1) and guides (2) on panel (3) must not be damaged.

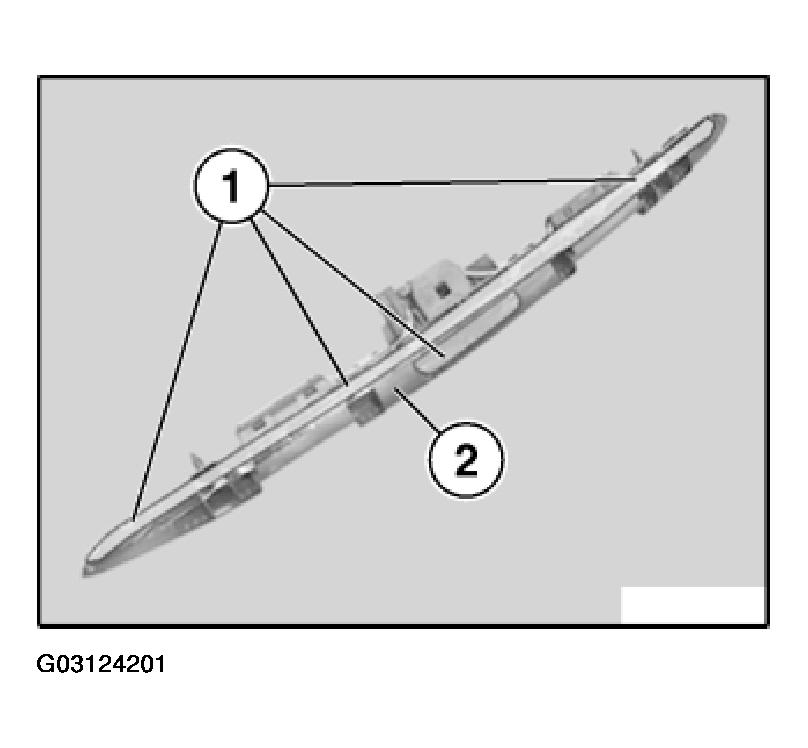

Remove remnants of adhesive (1) from handle strip (2).
Installation:
Perform function check with trunk lid open.
