51 16... Removing and installing/replacing insert in storage tray: Installation:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

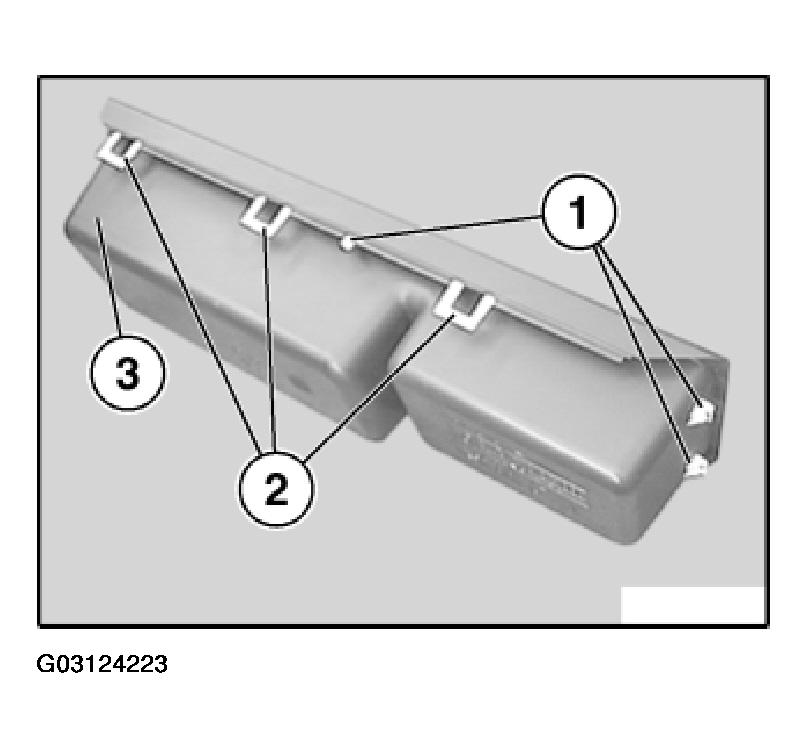

Guides (1) and supports (2) on left/right on insert (3) must not be damaged.

Fig 1: Installing Guides & Supports On Left/Right On Insert
Courtesy of BMW OF NORTH AMERICA, INC.

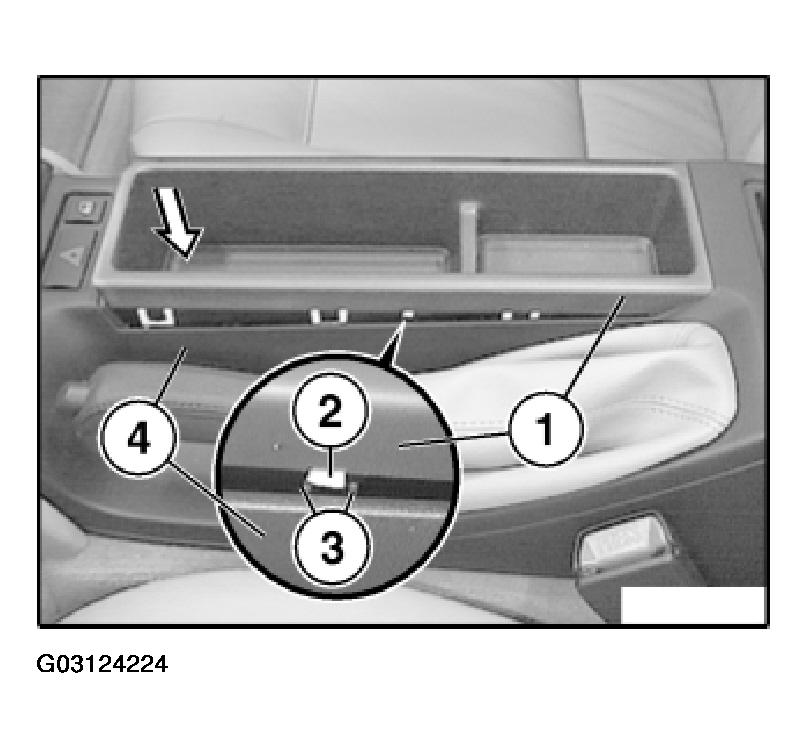

Install insert (1) at rear in center console (4).

Guide (2) must be positioned between supports (3) of center console (4), insert (1) can now be snapped towards bottom into place.

Fig 1: Installing Insert At Rear In Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

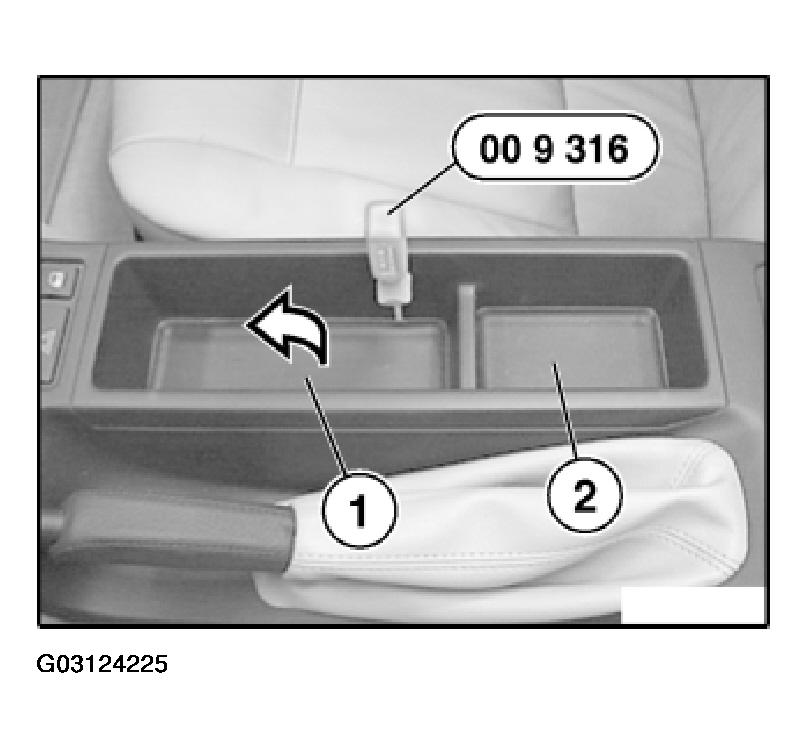

If necessary, remove rubber trays (1) and (2) with special tool 00 9 316 (sealing lip wedge).

Fig 2: Removing Rubber Trays & With Special Tool 00 9 316

Courtesy of BMW OF NORTH AMERICA, INC.
