51 21 146 Replacing locks for simultaneous closing with EWS control module
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Replace locks for simultaneous closing, refer to REPLACING LOCKS FOR SIMULTANEOUS CLOSING .
Remove panel for pedals, refer to REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Disconnect battery negative lead
- Disconnect plug connection on control module for electronic immobilizer and remove control module
- Install new control module
- Connect battery negative lead

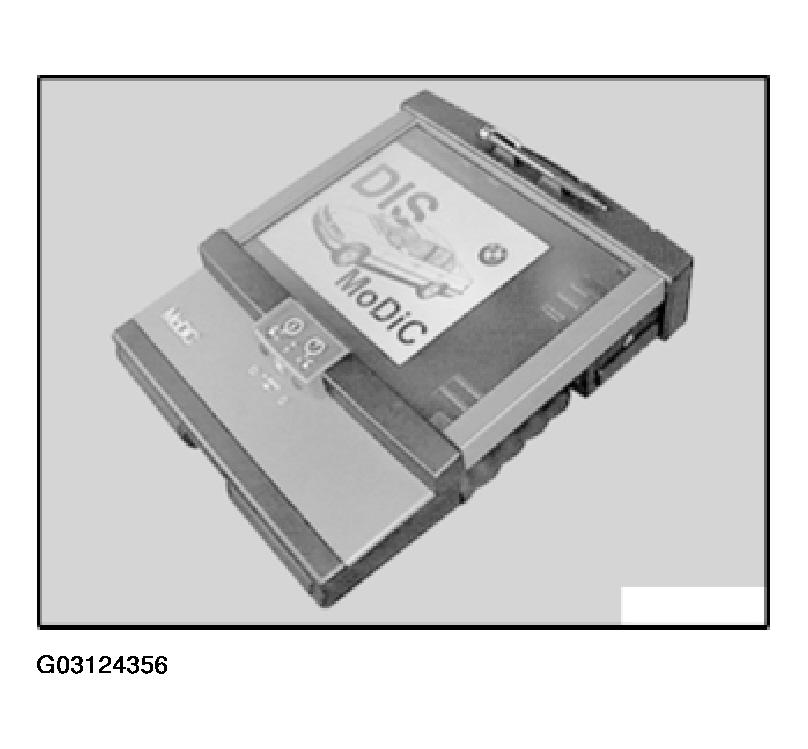

- Connect DIS Tester or MoDiC III
- Select model
- Select coding program
- Read out data
- Code EWS control module
- Terminate coding program
- Carry out function check
