Windscreen removal system "Roll Out 2000"

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

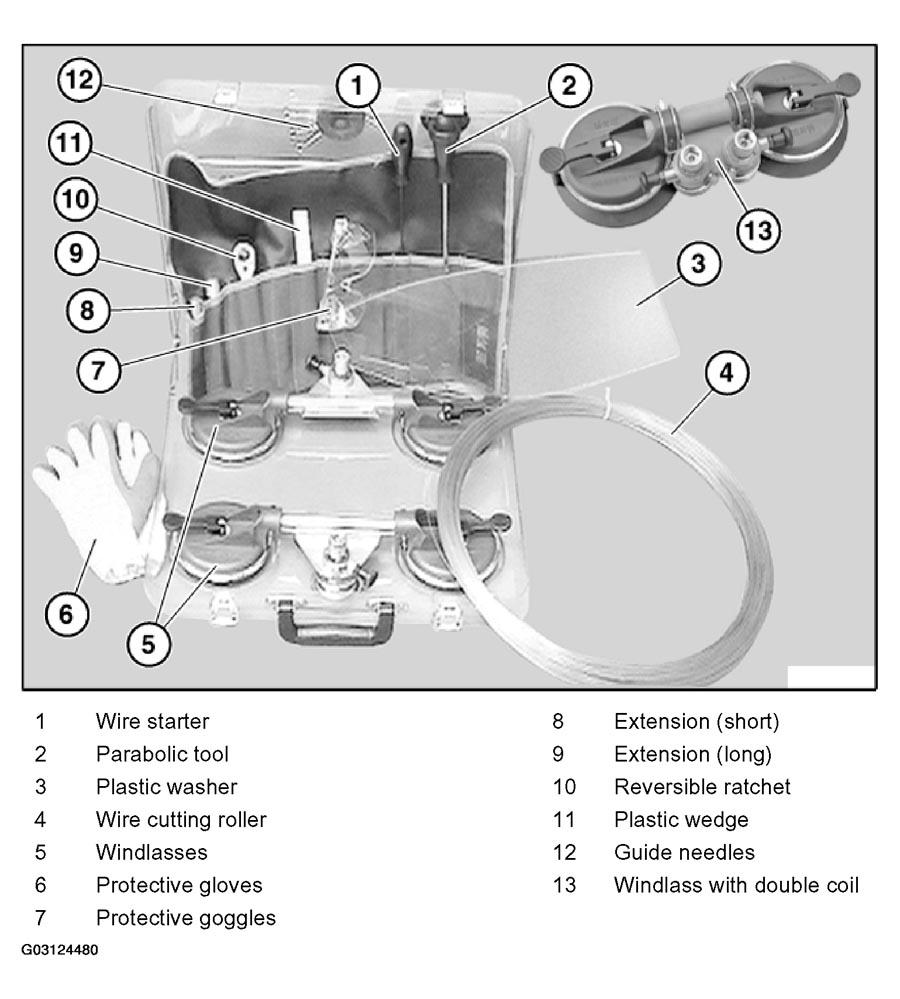

Fig 1: Identifying Windscreen Removal System "Roll Out 2000"
G03124480Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Using the "Roll Out 2000" system (sourcing reference: BMW Workshop Equipment and Planning Documentation) minimizes paintwork and ergonomic damage as well as damage that is hazardous to health.
WARNING: Follow safety instructions for working on cars with airbag systems (risk of injury).
IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag).
IMPORTANT: Always keep both suckers dry and clean to ensure their optimum adhesion on the windscreen.
Lubricate coil if interlock rattling becomes too loud.
Always wear protective goggles and gloves for your own safety.
