Laying cutting wire around windscreen:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Make sure the cutting wire is located at all four corner points below the windscreen.
Check that the cutting wire is not caught on retainers or body.

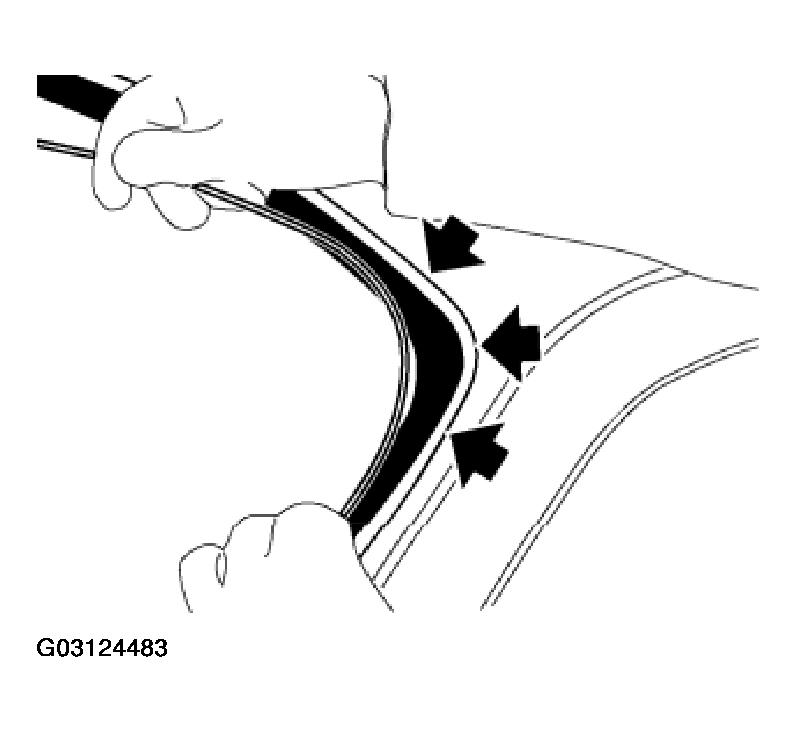

Fig 1: Laying Cutting Wire Around Windscreen
G03124483Courtesy of BMW OF NORTH AMERICA, INC.

Secure window on outside with adhesive tape against slipping

NOTE: Windows (1) with fitted seals (3) or sprayed-on surrounds:

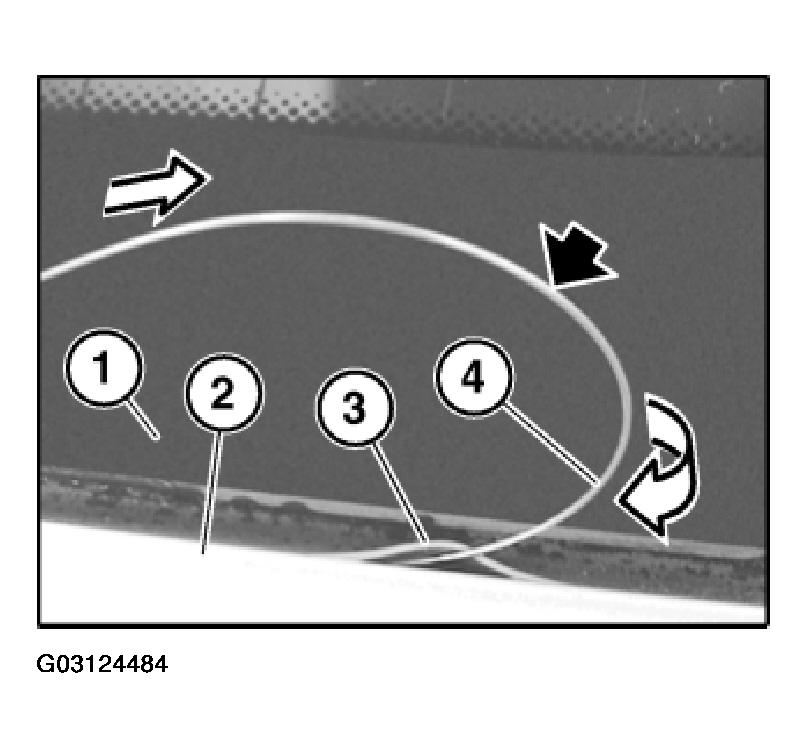

Fig 2: Moistening Cutting Wire & Seals On Window With Water
G03124484Courtesy of BMW OF NORTH AMERICA, INC.
