51 32 154 Adjusting left or right front door window: Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To release or partially detach sound insulation, follow procedure in "Removing and installing/replacing sound insulation on front left or right door", refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR

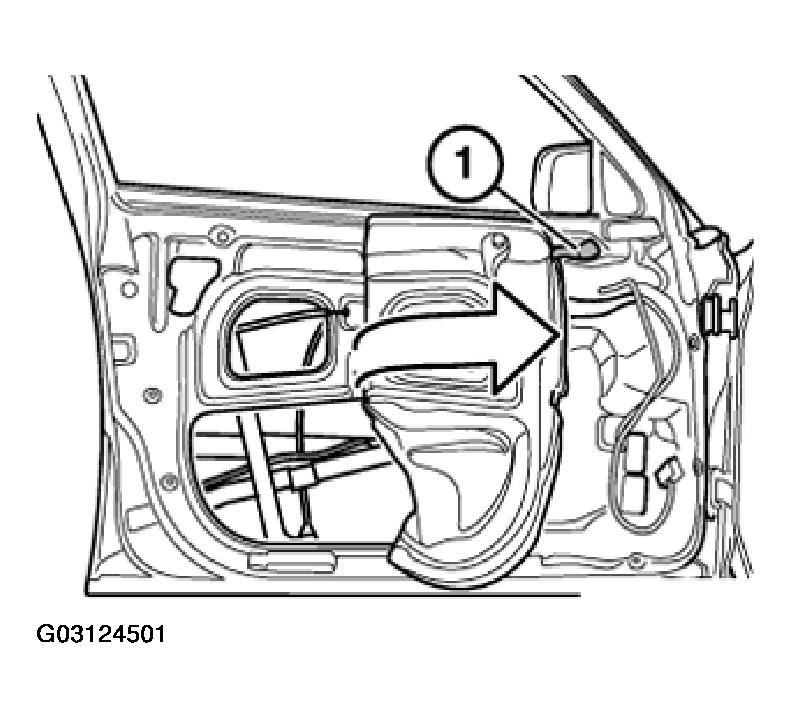

Partially detach sound insulation at rear and secure with adhesive tape (1).

NOTE: Acoustic insulation as shown in illustration only serves as an illustration: It is not identical to detached acoustic insulation.

Fig 1: Securing Sound Insulation With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) and (2) (do not release).

Open door window glass fully with window lifter (3).

Tighten nuts (1) and (2).
