18 12 030 Replacing final muffler

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 210

WARNING: Scalding hazard!
These tasks should only be carried out on an exhaust system that has cooled down!

Determining cutting point:

Carry over length of new rear muffler to installed rear muffler. Mark out cutting point.

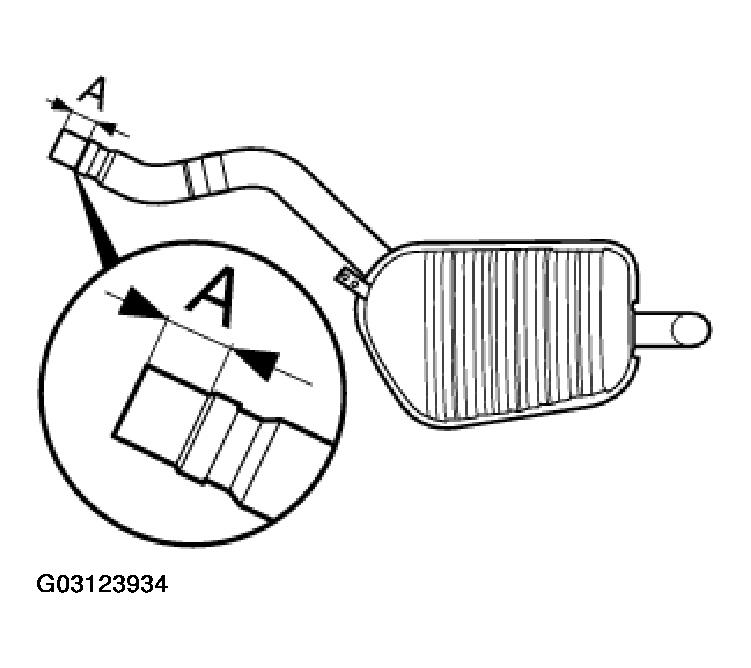

Fig 1: Identifying Cutting Point Dimension

G03123934

Courtesy of BMW OF NORTH AMERICA, INC.

Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.

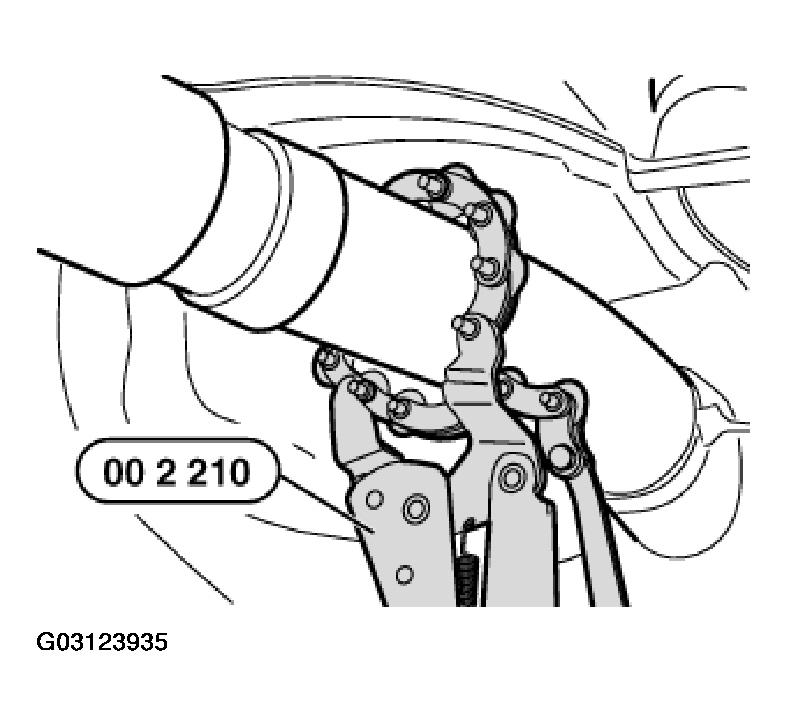

Fig 2: Cutting Exhaust Pipes Using Special Tool 00 2 210

G03123935

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted, detach vacuum hose (1) from vacuum unit (2).

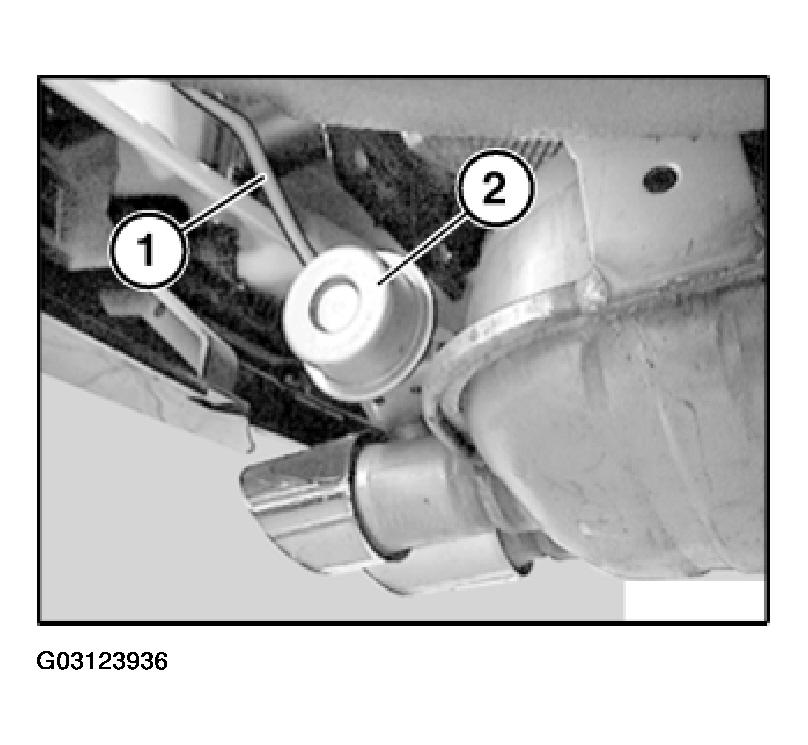

Fig 3: Disconnecting Vacuum Hose From Vacuum Unit

G03123936

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts on rubber mount of rear muffler on left and right and remove rear muffler.

Installation:

Install rubber mounts for suspension from body, vibration damper and both chrome exhaust pipes on new rear muffler.

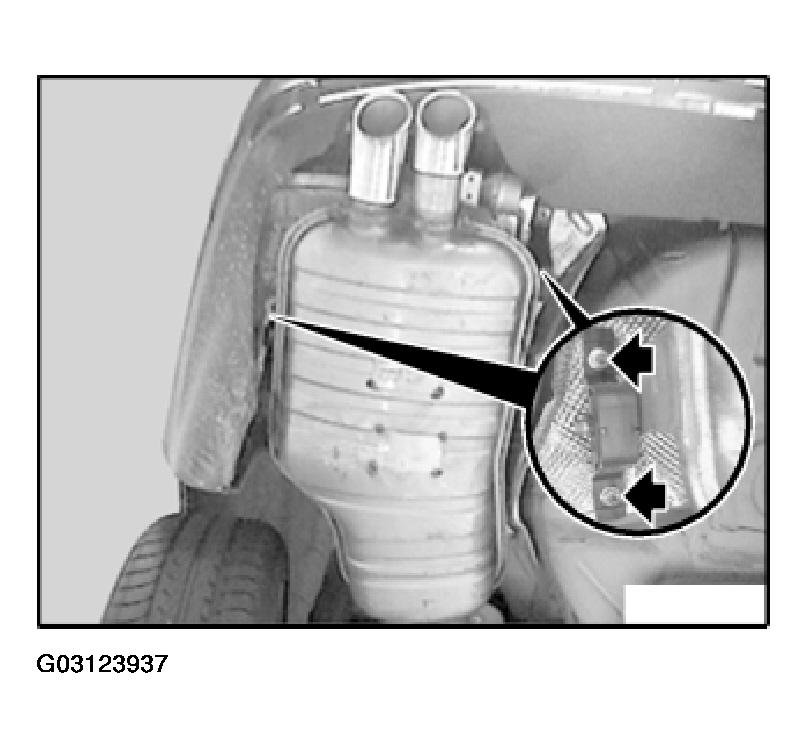

Fig 4: Identifying Release Nuts On Rubber Mount Of Rear Muffler Left & Right

G03123937

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect new rear muffler and center muffler by means of clamping sleeves

Cutting point is in middle of clamping sleeve.

Align exhaust system and clamping sleeves in such a way that there is sufficient spacing to adjoining components.

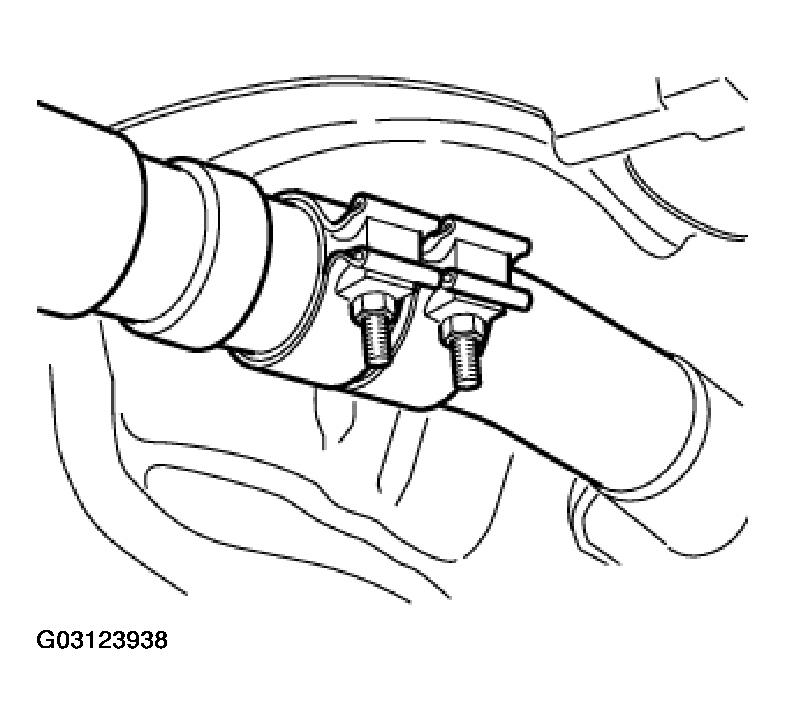

Fig 5: Connecting Rear Muffler & Center Muffler Using Clamping Sleeves

G03123938

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check position of end pipes to body cutout.

Tighten down screws of clamping sleeves.

Fig 6: Identifying Position Of End Pipes To Body Cutout

G03123939

Courtesy of BMW OF NORTH AMERICA, INC.
