17 00 009 Checking cooling system for water leaks: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, 2004 BMW 330xi, and 2004 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

17 0 002
17 0 005
17 0 007
17 0 008

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Checking pressure drop in cooling system:

Remove cap on expansion tank. Attach special tool 17 0 002 / 17 0 005.

Build up gauge pressure of 1.5 bar, wait approx. 2 minutes.

Cooling system is impervious to leaks if pressure drop is max. 0.1 bar.

Fig 1: Checking Cooling System For Water Leaks

Courtesy of BMW OF NORTH AMERICA, INC.

Checking pressure relief valve in cap:

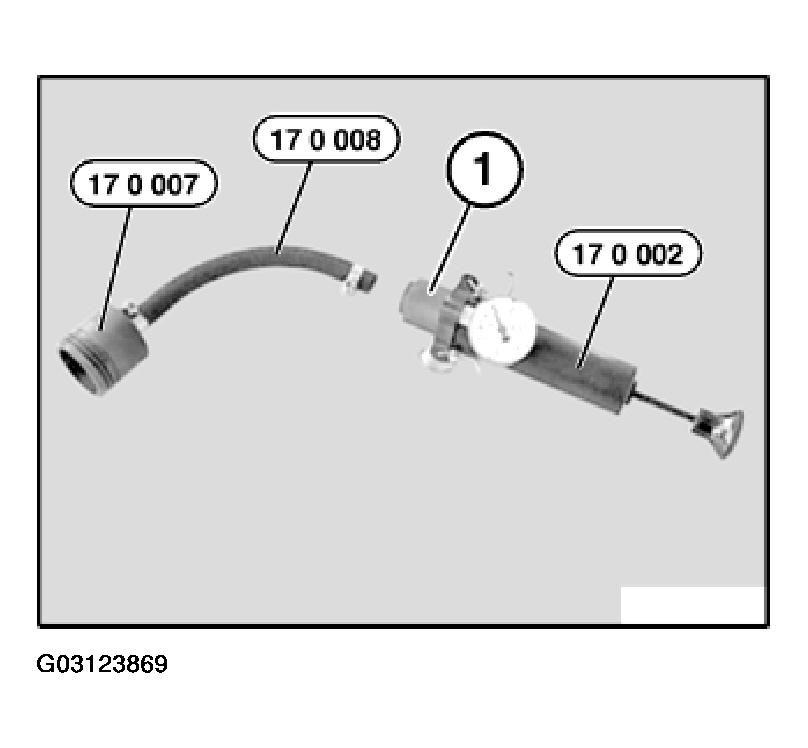

Detach rubber (1) from hand pump.

Attach special tool 17 0 007 / 17 0 008.

Fig 2: Attaching Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

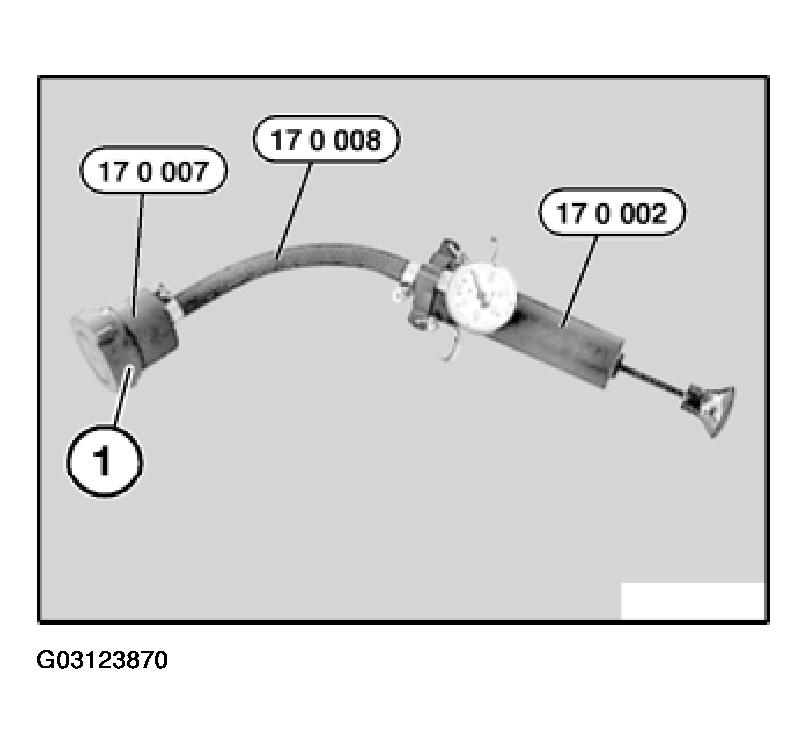

Screw cap (1) onto special tool.

Build up pressure with special tool (hand pump) 17 0 002; observe pressure gauge to ascertain when opening pressure is achieved.

Compare opening pressure of pressure relief valve.

Fig 3: Screwing Cap Onto Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
