16 14 530 Replacing sucking jet pump
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Suck the fuel out of the fuel tank,
refer to DRAINING AND FILLING FUEL TANK
Remove fuel level sensor (right),
refer to REMOVING AND INSTALLING/REPLACING FUEL LEVEL SENSOR (RIGHT) (COMPLETE UNIT)
Remove fuel level sensor (left),
refer to REMOVING AND INSTALLING / REPLACING FUEL LEVEL SENSOR (LEFT) (COMPLETE UNIT)
Left side:

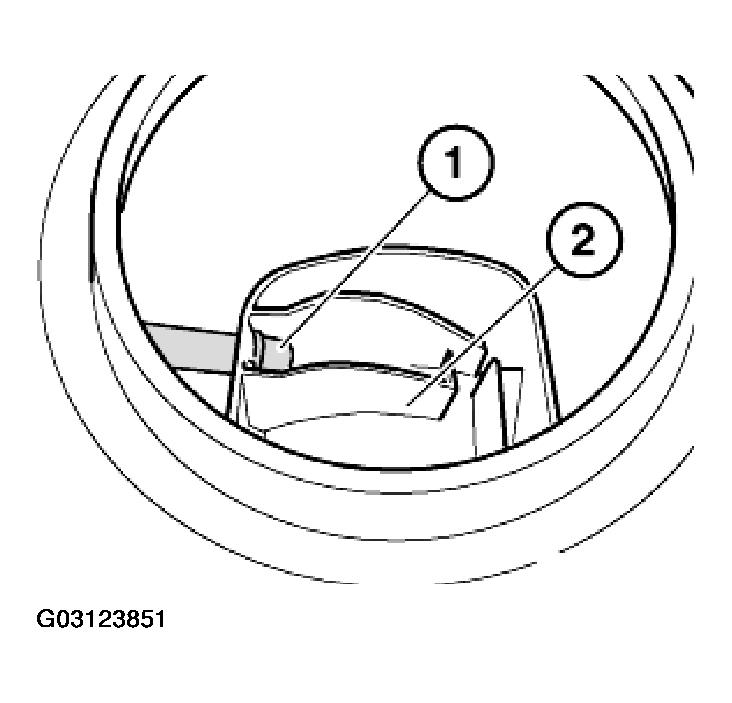

Pull tank expansion line (1) on fuel baffle (2) out of locking fixture.
Installation:
- Ensure that tank expansion line is perfectly connected in fuel baffle.
Right side:

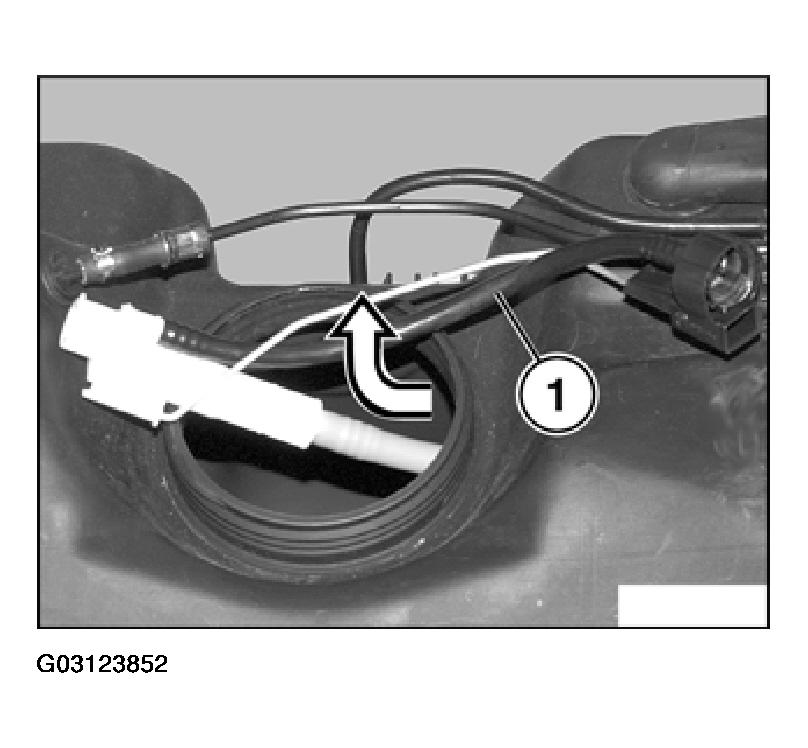

Remove tank expansion line from fuel tank.
Installation:
- Tank expansion line must not be bent when it is being removed.
Installation:
- Ensure that non-return valve (1) is fitted in tank expansion line.
