16 00 Fuel supply system E46 (spark ignition engines)

General function description for fuel systems.

Fuel system

The saddle-shaped fuel tank contains the surge chamber with the electric fuel feed supply pump on its right side.

The surge chamber ensures that the fuel supply pump is properly supplied in all vehicle operating states.

The fuel is repumped from the right side of the fuel tank into the surge chamber via the suction jet pump integrated in the tank expansion line. The suction jet pump is operated via the fuel feed line.

The pressure limiting valve controls the pressure required to operate the suction jet pump. The outlet protection valve protects the fuel return line. The valve closes in the event of a pressure drop when the fuel return line is damaged or disconnected.

This prevents fuel from escaping from the fuel tank in extreme vehicle positions (overturning, inclined position).

The non-return flap prevents fuel from splashing back in the filler pipe after shutdown of the petrol/gas pump nozzle.

Fuel supply to engine:

M43TU / M52TU (see Fig 1, view A):

The fuel is routed from the electric fuel supply pump via the fuel feed line and the fuel filter to the fuel rail. The fuel returns to the fuel tank via the pressure regulator secured to the fuel rail and the fuel return line.

M52 USA (see Fig 3):

The fuel is routed from the electric fuel supply pump via the fuel feed line and the fuel filter to the fuel rail.

The fuel returns to the fuel tank via the 3/2-way valve (see view A), the pressure regulator and the fuel return line.

This engine fuel circuit with return from the fuel rail is then switched for engine starting and a defined time < 1 minute.

After this phase, the 3/2-way valve switches and interrupts the fuel return from the fuel rail. At the same time, the line branch directly at the fuel filter is activated by the 3/2-way valve to the pressure regulator (see view B).

The fuel rail is now return-free.

M54 / M54 USA (see Fig 1 and Fig 4 ):

Pressure regulator and fuel filter are incorporated in a single unit.

The fuel is routed from the electric fuel supply pump via the fuel feed line and the fuel filter/pressure regulator unit to the fuel rail.

The fuel rail is return-free. The fuel flows directly from the fuel filter/pressure regulator unit back into the fuel tank.

Venting system USA (see Fig 3 and Fig 4 )

The fuel tank is vented during refueling via the refueling vent line.

Because of its large cross-section, the refueling vent line directs the displaced volume (fuel vapors) at high speed through the expansion tank to the carbon canister.

The activated carbon retains the fuel contained in the fuel vapors. The cleaned air is discharged to atmosphere via the evaporation line, the leakage diagnosis pump or the tank leakage diagnostic module and the dust filter.

During driving, the system tank is vented in the same way via the refueling vent line and service vent lines.

The condensed constituents of the fuel vapors pass from the expansion tank via the left service vent line back into the fuel tank.

The float valve in the expansion tank is closed by the rising fuel if the tank is overfilled. This prevents overflowing of the expansion tank.

The roll-over valve on the upper side of the expansion tank closes in the event of the vehicle overturning. This prevents the fuel from escaping into the carbon canister. The carbon canister is regenerated by purging with fresh air.

The engine control unit opens the tank vent valve. Thus the vacuum pressure of the engine intake manifold is applied at the purge line.

The carbon canister is purged in this way. The fresh air needed for this purpose is supplied via the leakage diagnosis pump or the tank leakage diagnostic module and the dust filter. The fuel constituents bound by the activated carbon are flushed out by the supplied air and directed via the purge line to the engine for combustion.

This operation is only possible while the engine is running.

Venting system worldwide (see Fig 1)

Refer to Venting system USA with following differences:

1. During refueling, the fuel tank is vented via the refueling vent line, which directs the displaced volume into the filler neck. There is a second service vent line with a smaller cross-section in place of the refueling vent line (USA) with large cross-section. There is no float valve.
2. The carbon canister has a smaller capacity.
3. There is no leakage diagnosis pump/tank leakage diagnostic module or dust filter.
4. For Japanese vehicles, the refueling vent line (USA) is replaced by an additional vent line with a float valve in the expansion tank, which is connected to the refueling vent line (worldwide).

This modification is required on account of the more heavily gas-emitting fuel in Japan (see Fig 2).

Leakage detection for tank venting system USA (see Fig 3 and Fig 4 )

The leakage diagnosis pump or tank leakage diagnostic module serves to detect leakages for the tank venting system within the on-board diagnosis laid down by legislation.

The tank venting system is pressurized and the pressure loss is detected in the event of a leak.

With the leakage diagnosis pump, the pressure loss is measured by way of the repumping time. The pump is operated with vacuum pressure from the intake manifold via the vacuum line.

The tank leakage diagnostic module detects the pressure loss by way of the power consumption of the integrated pump. The air required for this purpose is supplied via the dust filter.

Both systems are activated by the engine control unit.

The pressure test line establishes the connection between fuel tank and filler neck. This enables a leak to be detected in the filler pipe - tank cap area.

Determining fill level in fuel tank

The fuel level is measured by means of lever-type sensors on both sides of the fuel tank. The right lever-type sensor is integrated in the fuel supply unit. The left lever-type sensor is located in the left sensor unit. The combination of the determined ohm values from the right and left lever-type sensors produces the actual level in the fuel tank.

Pressure regulator: 3.5 bar.

Working pressure of suction jet pumps: 1 - 1.3 bar

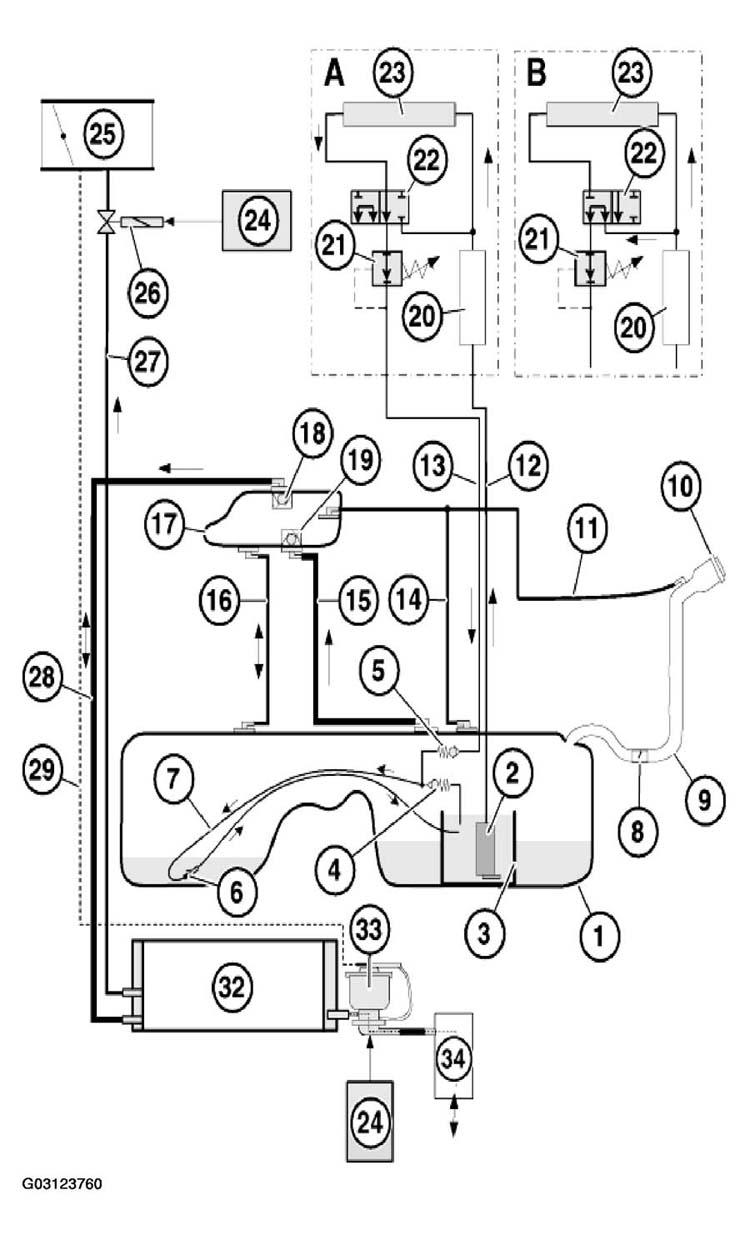

Fig 1: Schematic Drawings Of Fuel Supply Systems (Fuel Supply System E46 With M43Tu / M52Tu / M54)

Courtesy of BMW OF NORTH AMERICA, INC.

1. 5.1 Fuel supply system E46 with M43TU / M52TU / M54

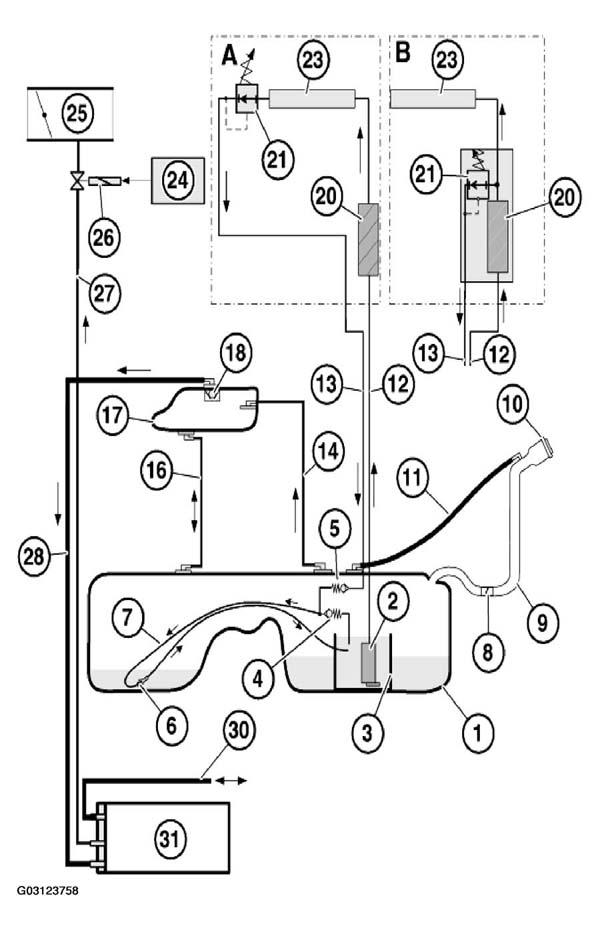

   Fig 2: Schematic Drawings Of Fuel Supply Systems (Fuel Supply System E46 With M43TU / M52/TU M54 Japan)

   Courtesy of BMW OF NORTH AMERICA, INC.
2. 5.2 Fuel supply system E46 with M43TU / M52/TU M54 Japan

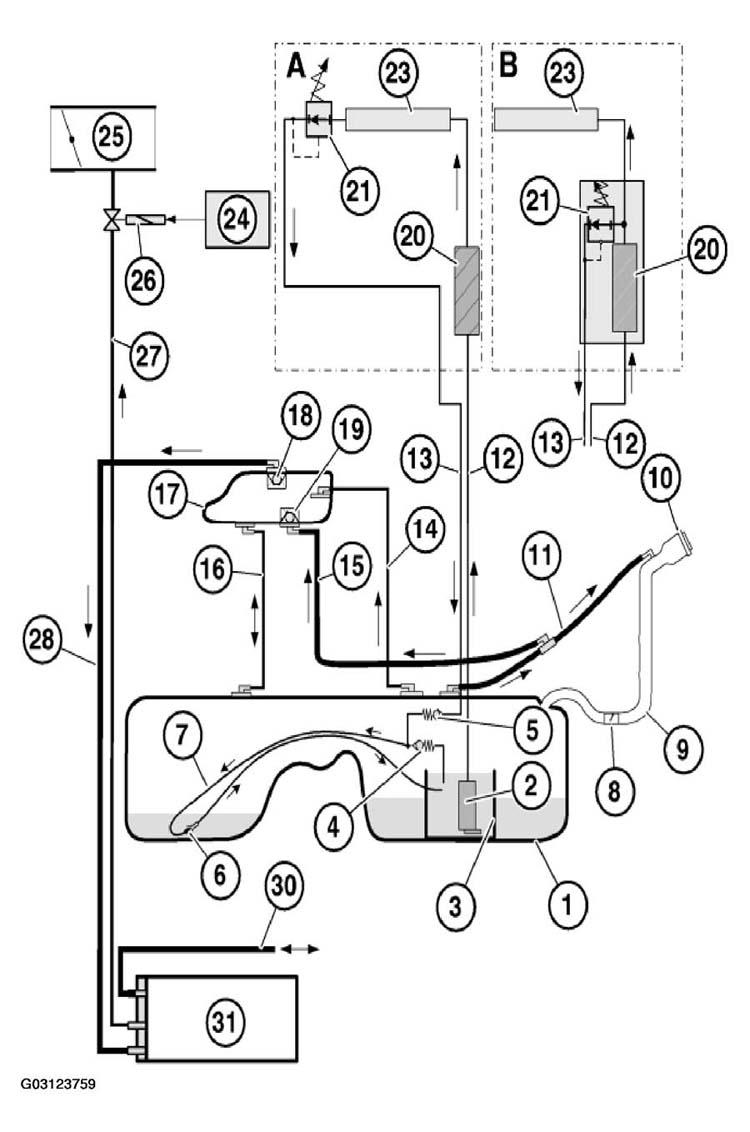

   Fig 3: Schematic Drawings Of Fuel Supply Systems (Fuel Supply System E46 With M52 USA)
