12 41 041d Replacing solenoid switch
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
Turn off ignition.
Remove starter motor.

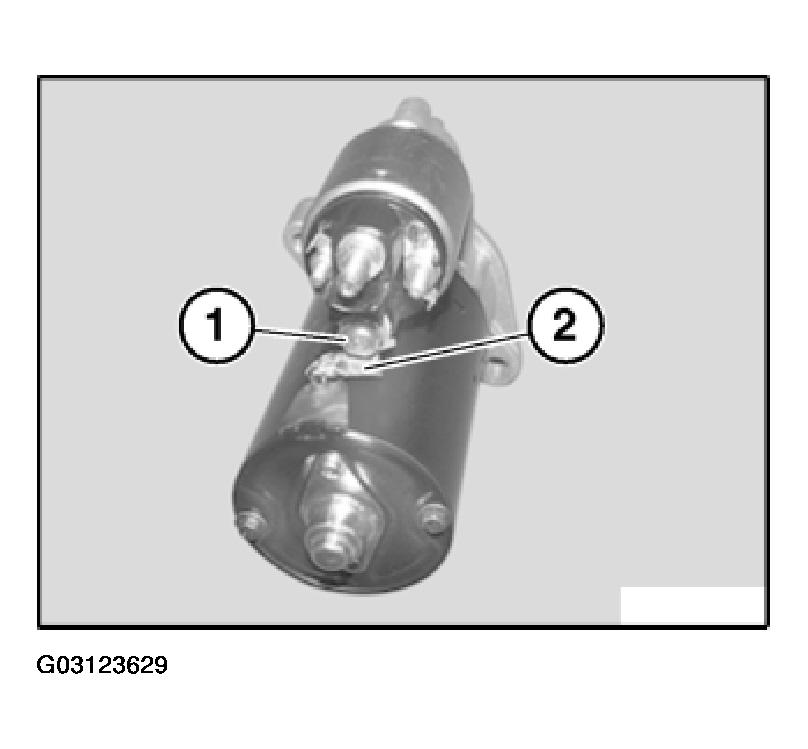

Release nut (1).
Remove cable lug (2).
CAUTION:
Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing.
Tightening torque. Refer to TORQUE SPECIFICATIONS .

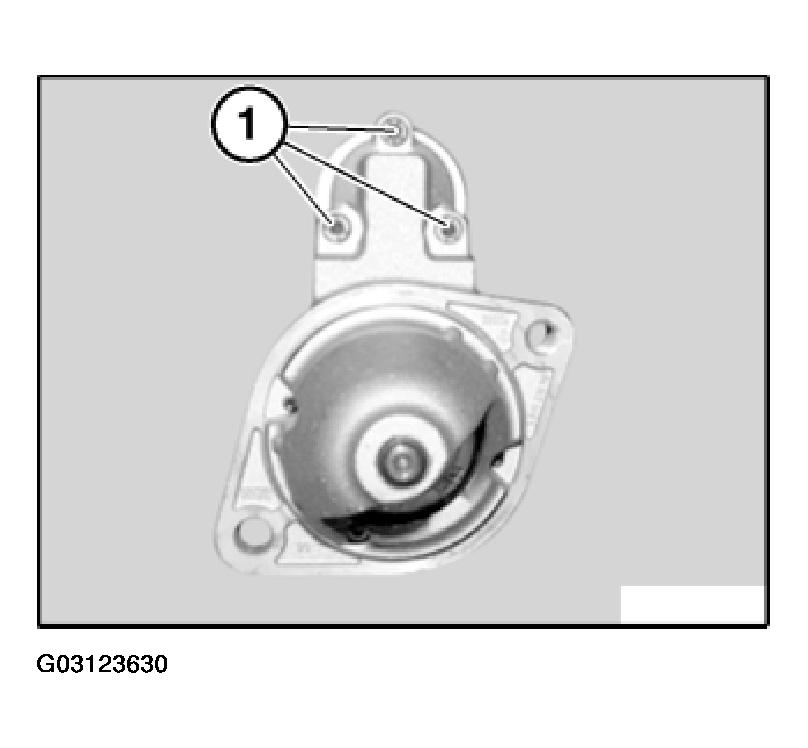

Release screws (1).

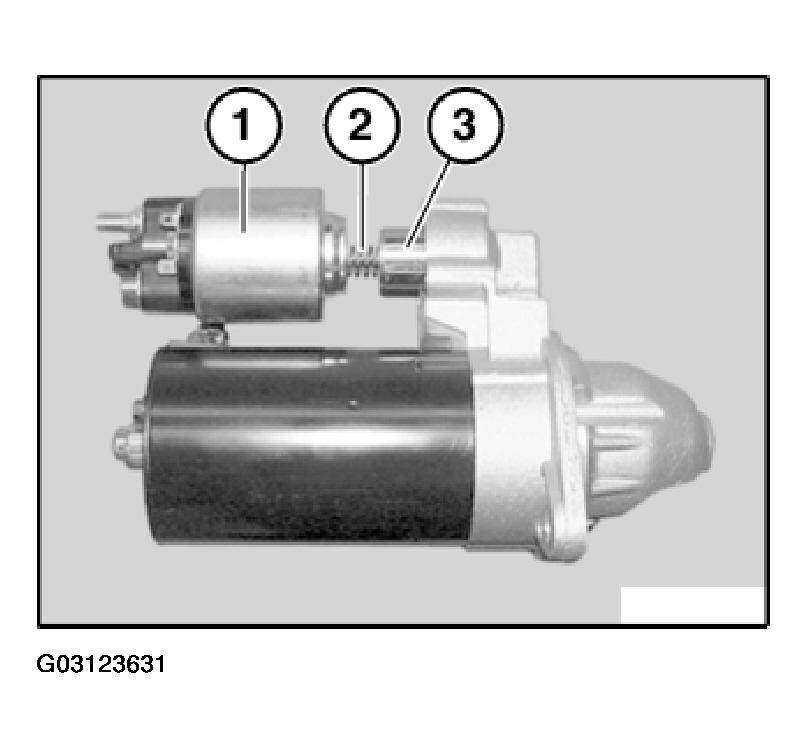

Remove solenoid switch (1) and spring (2).
Unhook pin (3).
Installation:
Check pin (3) for wear and apply grease.
