12 14 521 Replacing pulse generator on crankshaft (M54/M56)

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
E46, E60, E61 only:

Remove reinforcement plate on front axle support. See 51 71 374 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE ON FRONT AXLE SUPPORT

IMPORTANT: The section Removing and installing reinforcement plate on front axle support contains important installation instructions.

If fitted:

Remove vacuum reservoir for exhaust flap. See 18 10 020 REMOVING AND INSTALLING/REPLACING VACUUM TANK FOR EXHAUST FLAP

All models:

NOTE: Installation location of pulse generator for crankshaft is underneath starter motor.

NOTE: For a better overview, this work step is shown on an engine that has been removed.

Unlock plug (1) and remove.

Unscrew bolt (2).

Remove pulse generator (3).

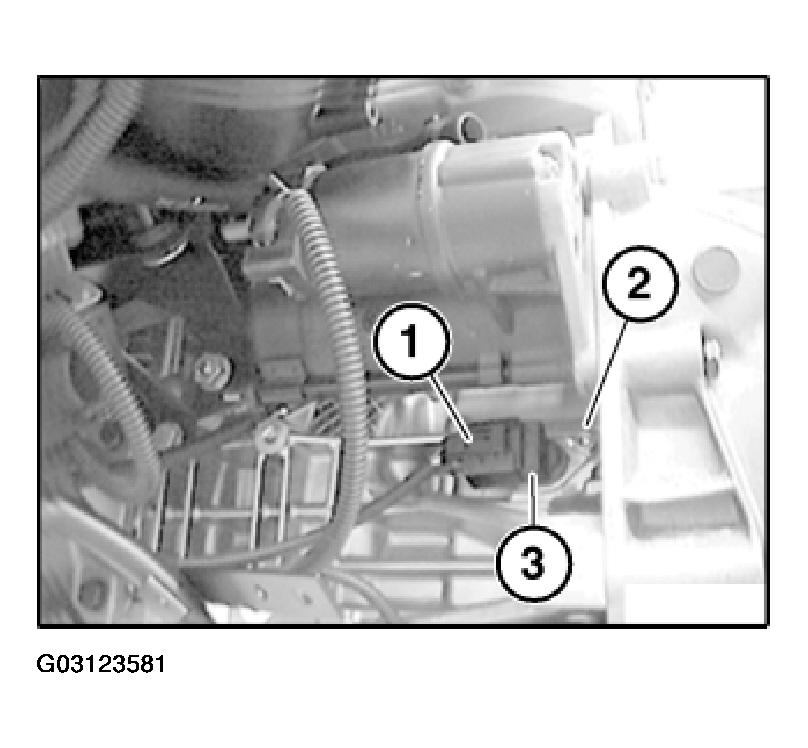

Fig 1: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Now clear the fault memory.
