11 0 220 Compression test kit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

SPECIAL TOOL

Note:	For all petrol/gasoline and diesel engines.
Engine:	M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50,M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17
SI number:	1 09 92 (558)
Order number:	11 0 220
	Compression test kit
Consisting of:
16= 11 0 239	Adapter
	NOTE: Engine M67, M67TU
11 0 221	Compression recorder for diesel engines
11 0 222	Test probe
	NOTE: For compression recorder 11 0 221 and 11 0 160 / Engine: M21, M41, M47, M51, M57
	In conjunction with: 11 0 240
11 0 223	Test sheets (100 x)
	NOTE: For compression recorder for 11 0 221
11 0 224	Compression recorder for petrol/gasoline engines
11 0 226	Test probe
	NOTE: For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S50US, S52US, S62
	In conjunction with: 11 0 240
11 0 228	Rubber taper with fitting
	NOTE: For compression recorder 11 0 224 and 11 0 160 / engine: M10, M20, M30
	In conjunction with: 11 0 240
11 0 229	Test charts (100 x)
	NOTE: For compression recorder 11 0 224
11 0 231	Case
	NOTE: With foam inlay for compression recorder
11 0 233	Non-return valve
11 0 234	Filter 3 x 3 mm
11 0 235	Test probe, screw-in
	NOTE: For measuring "absolute compression" at all cylinders, engine: S14, S38, S50B30, S50B32, S50US, S52US, S54
In conjunction with:	DIS and DIS pressure sensor
11 0 236	Test probe
	NOTE: For compression recorder 11 0 221 or DIS pressure sensor /engine: M47, M57, M57TU
11 0 237	Adapter
	NOTE: For measuring "absolute compression" at all cylinders. Engine: W17
	In conjunction with: 11 0 221, 11 0 235 or DIS pressure sensor, 11 0 235

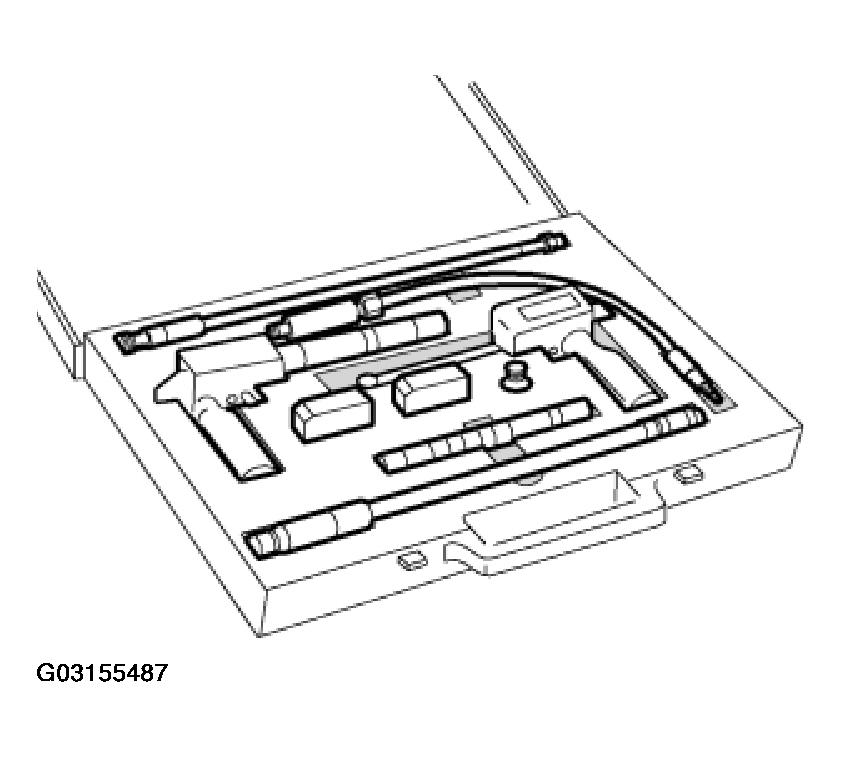

Fig 1: Identifying Compression Test Kit

Courtesy of BMW OF NORTH AMERICA, INC.
