00 7 500 Universal puller Kukko 17/K

WARNING: This page is about a different car, the 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

UNIVERSAL PULLER KUKKO 17/K SPECIFICATIONS

Note:	For removing bearing inner race from drive flange at rear wheel bearing
Series:	E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1
Order number:	00 7 500
	Universal puller Kukko 17/K
Consisting of:
1 = 00 7 501	Pressure spindle with bridge
2 = 00 7 502	Adjusting spindle (2 x) with knurled nuts (4 x)
3 = 00 7 503	Pressure spindle, side
4 = 00 7 504	Adjusting jaws (2 x)
5 = 00 7 505	Adjusting screws (2 x) with nuts
	NOTE: For adjusting jaw (2 x)
6 = 00 7 506	Extension (2 x)
7 = 00 7 507	Bridge

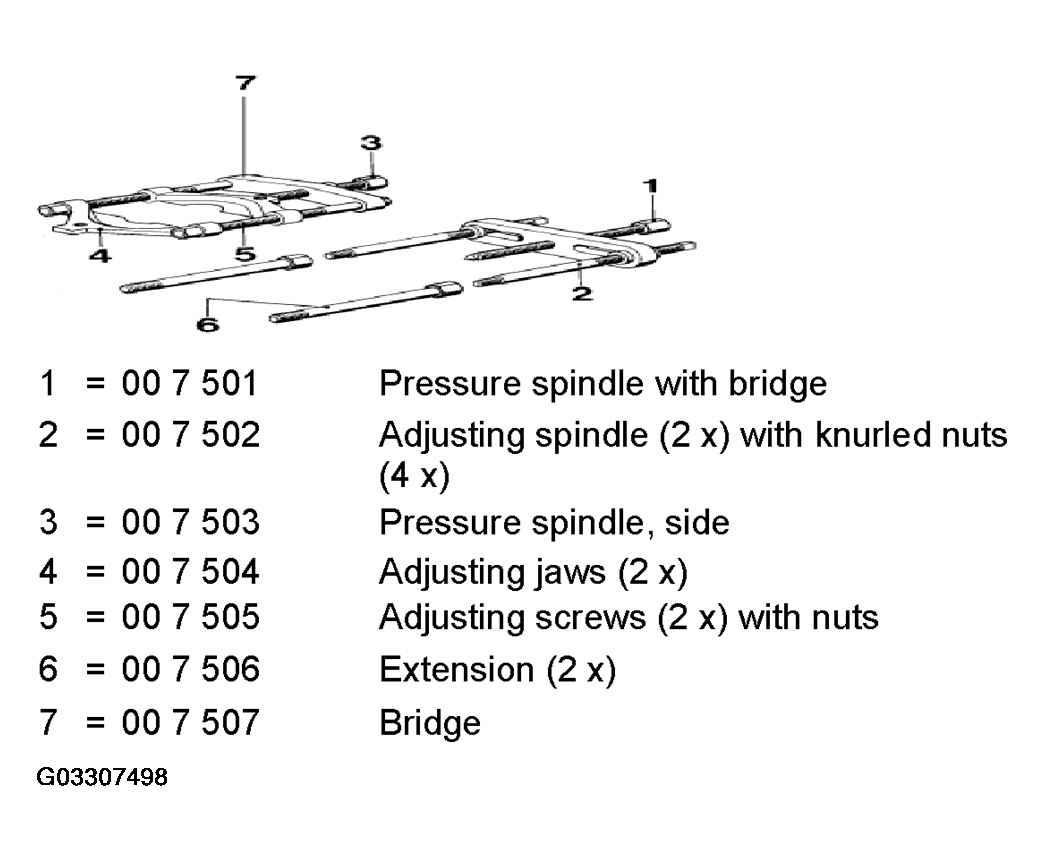

Fig 1: Identifying Universal Puller Kukko 17/K

Courtesy of BMW OF NORTH AMERICA, INC.
