00 5 010 Universal puller

WARNING: This page is about a different car, the 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Minimum Set: Mechanical Tools

UNIVERSAL PULLER SPECIFICATIONS

Note:	For withdrawing radial seals 00 5 011 for E90
Series:	E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1
Storage location:	B26
Order number:	00 5 010
	Universal puller
Consisting of:
1 = 00 5 011	Extractor claw (3 pieces required)
2 = 00 5 012	Guide spindle
3 = 00 5 013	Pressure spindle
4 = 00 5 014	Take-up star
	NOTE: For taking up extractor claw
5 = 00 5 015	Thrust member

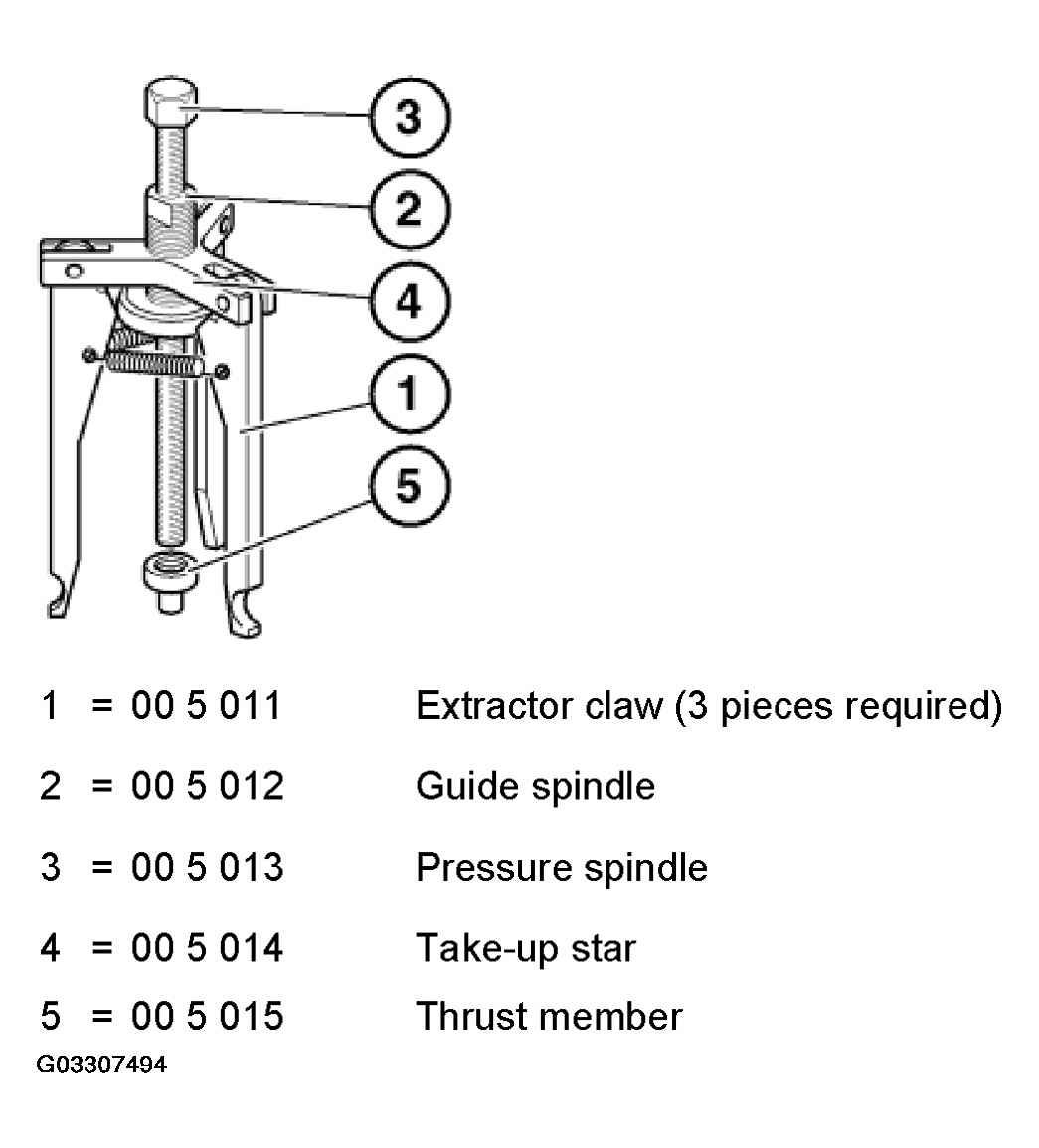

Fig 1: Identifying Universal Puller

Courtesy of BMW OF NORTH AMERICA, INC.
