00 2 040 Basic take-up fixture
WARNING: This page is about a different car, the 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
BASIC TAKE-UP FIXTURE SPECIFICATIONS
| In conjunction with: | 00 2 030, 33 3 270, 33 3 290, 33 3 300, 33 4 220, 33 4 230 |
| Note: | For removing and installing rear axle carrier, without pillar guide and lift hoist |
| Series: | E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, RR1 |
| Storage location: | Single |
| SI number: | 1 05 90 (207) |
| Order number: | 00 2 040 |

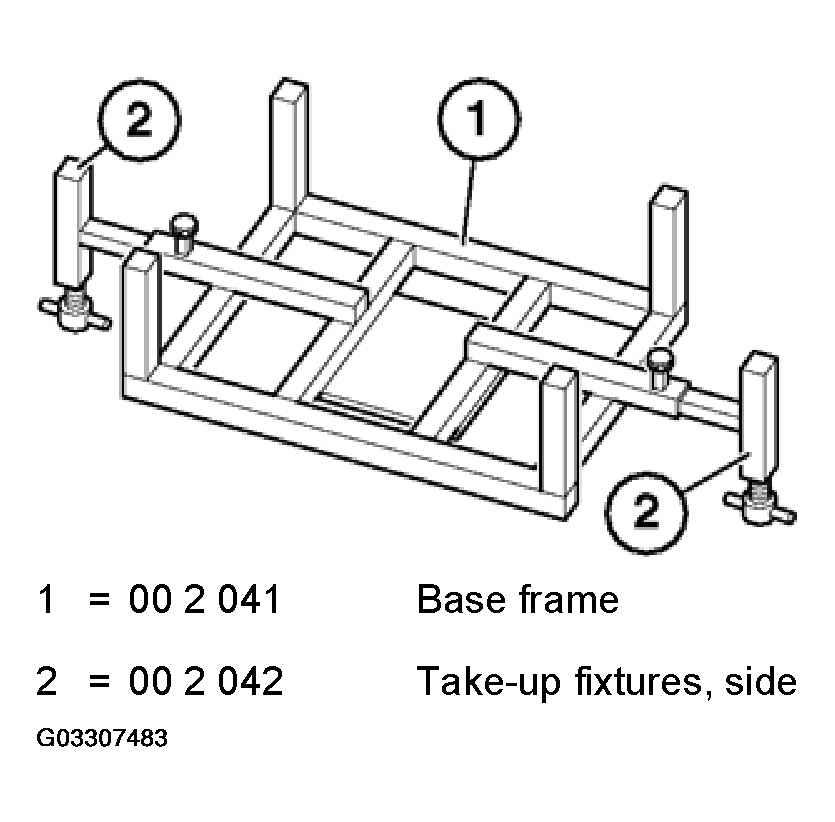

| Basic take-up fixture | |
| Consisting of: | |
| 1 = 00 2 041 | Base frame |
| 2 = 00 2 042 | Take-up fixtures, side |
