00 1 450 Assembly stand

WARNING: This page is about a different car, the 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

ASSEMBLY STAND SPECIFICATIONS

In conjunction with:	All take-up supports
Note:	For engines and transmissions
Series:	E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1
Engine:	M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17
SI number:	1 02 87 (721)
Order number:	00 1 450
	Assembly stand
Consisting of:
1 = 00 1 451	Assembly stand for 8- and 12-cylinder engines
	NOTE: Engine: M60, M62, M70, M73
	In conjunction with: 11 0 080 (for 8 cylinders) / 00 1 460 (for 12 cylinders)
2 = 00 1 452	Drip tray
3 = 00 1 453	Locating component
	NOTE: For accommodating 4- and 6- cylinder engines and transmissions, engine: M10, M20, M30, M40, M41, M42, M43, M44, M50, M52, M52, S14, S38, S50B30, S50B32, transmission: all
	In conjunction with: Mountings for engine and transmission
4 = 00 1 454	Stand with 2 wheels
	NOTE: For accommodating 4- and 6- cylinder engines and all transmissions

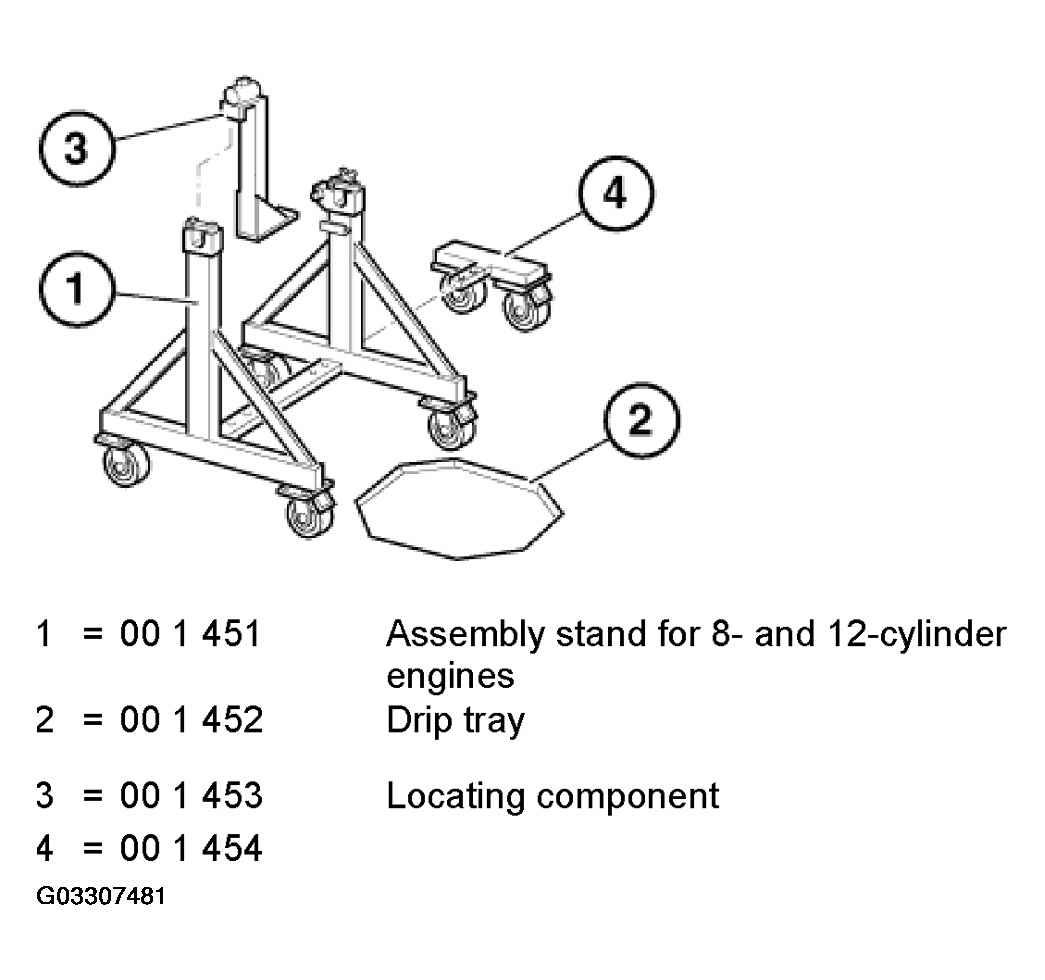

Fig 1: Identifying Assembly Stand

Courtesy of BMW OF NORTH AMERICA, INC.
