Z3 Roadster Up To 04/99:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Pull out radio cover and, if necessary, radio (do not disconnect plug connection), refer to 65 11 030 .

Through radio aperture, press clips together on sides of clock.

Press out clock towards front. Disconnect plug connection.

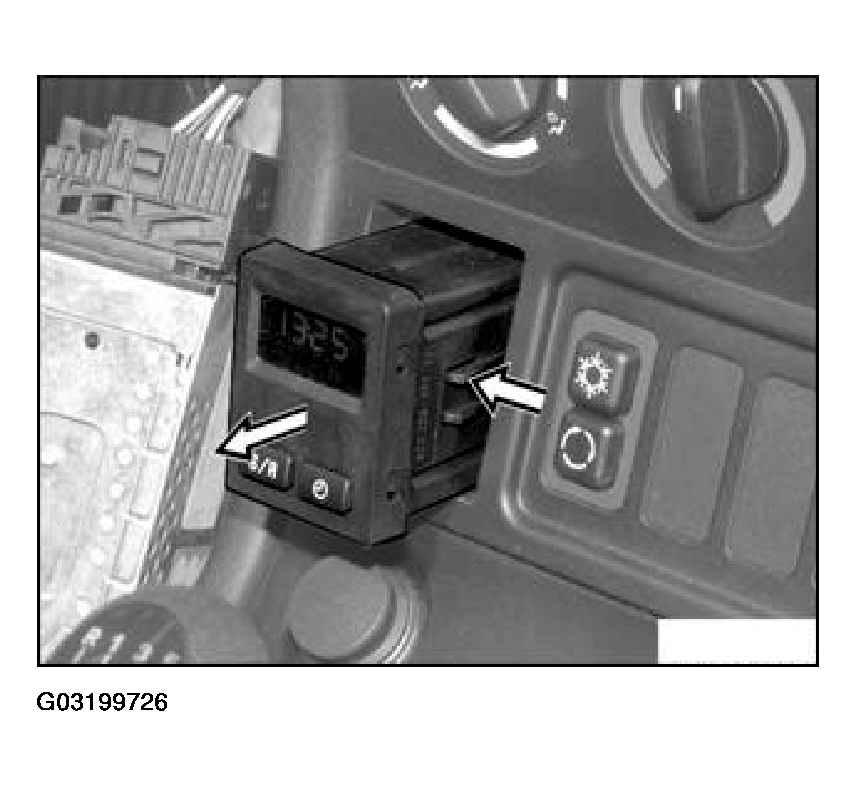

Fig 1: Removing Clock (Z3 Roadster Up To 04/99)

Courtesy of BMW OF NORTH AMERICA, INC.
