62 99 090 Replacing Bulbs In Instrument Carrier: Notes
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Remove complete instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING ENTIRE INSTRUMENT CARRIER (Z3 ROADSTER, Z3 COUPE) .

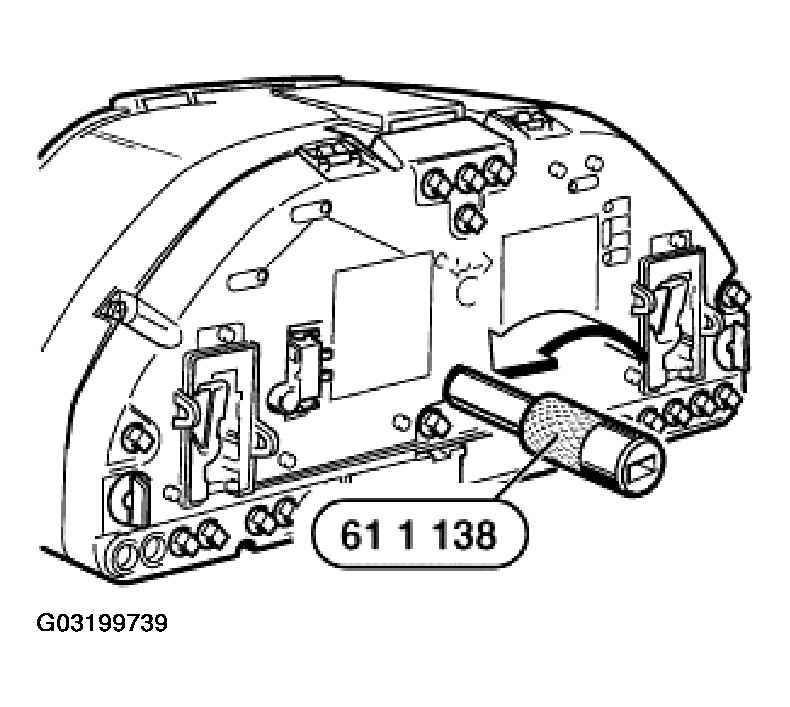

Turn bulb holder of faulty instrument lighting with special tool 61 1 138 in direction of arrow and remove. Pull bulb out of holder.
