62 99 090 Replacing Bulbs In Instrument Carrier: Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Make sure bulb brightness is correct.

Bulb chamber could melt in event of excessive bulb power.

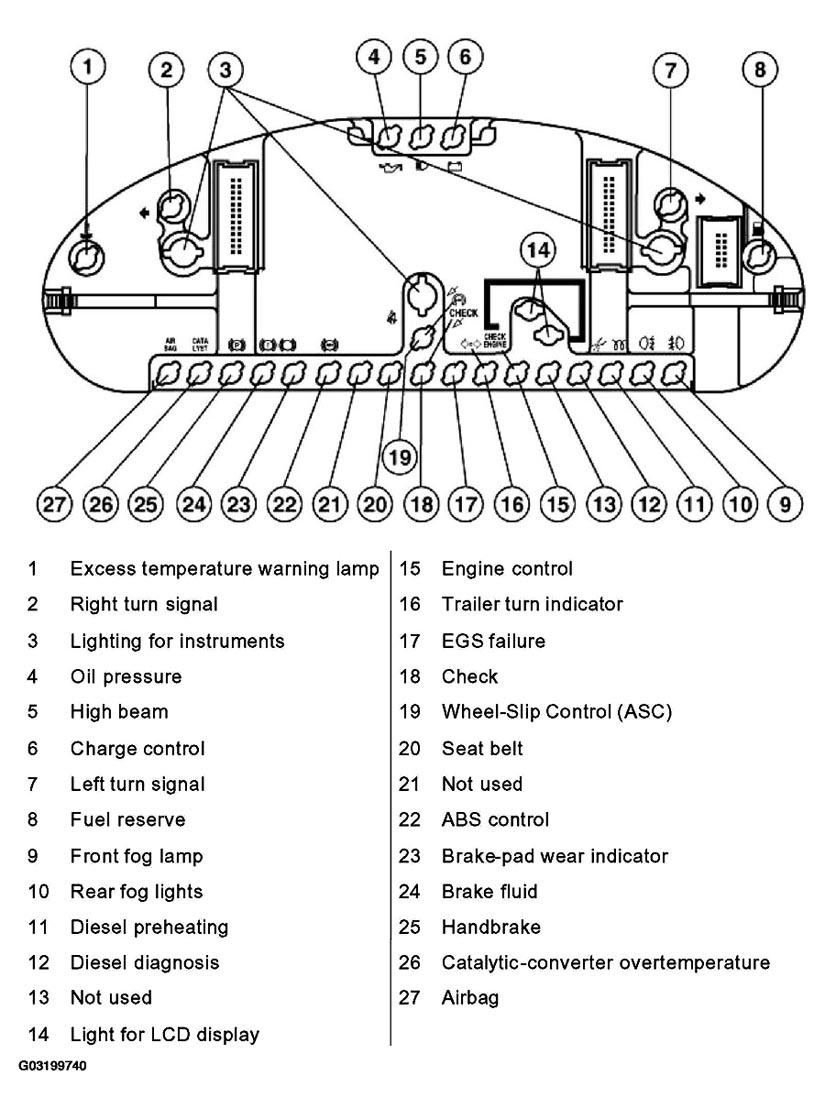

Fig 1: Locating Bulbs

Courtesy of BMW OF NORTH AMERICA, INC.
