61 61 100 Removing and installing/replacing both windshield wiper arms

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Detach caps.

Unscrew left and right nuts.

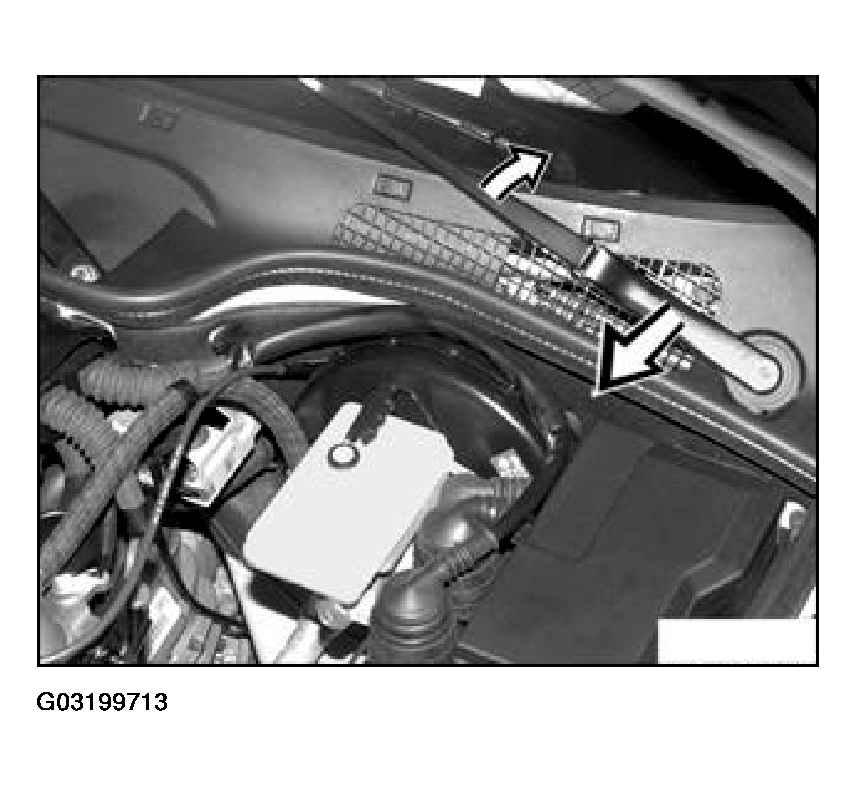

Fig 1: Removing Nut Of Windshield Wiper Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 25 Nm.

Fold up wiper arms up to end position and detach from drive shaft.

Fig 2: Removing Wiper Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting dimensions of wiper arms:

Reference points are the mountings of the wiper blades on the wiper arms to the sealing lip of the cowl panel.

A = 45 mm

B = 25 mm

Fig 3: Adjusting Wiper Arms

Courtesy of BMW OF NORTH AMERICA, INC.
