6131 280 Replacing oil-pressure switch: Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Tightening torque, 25 Nm.

Check oil level.

Disconnect connector.

Pull off intake neck.

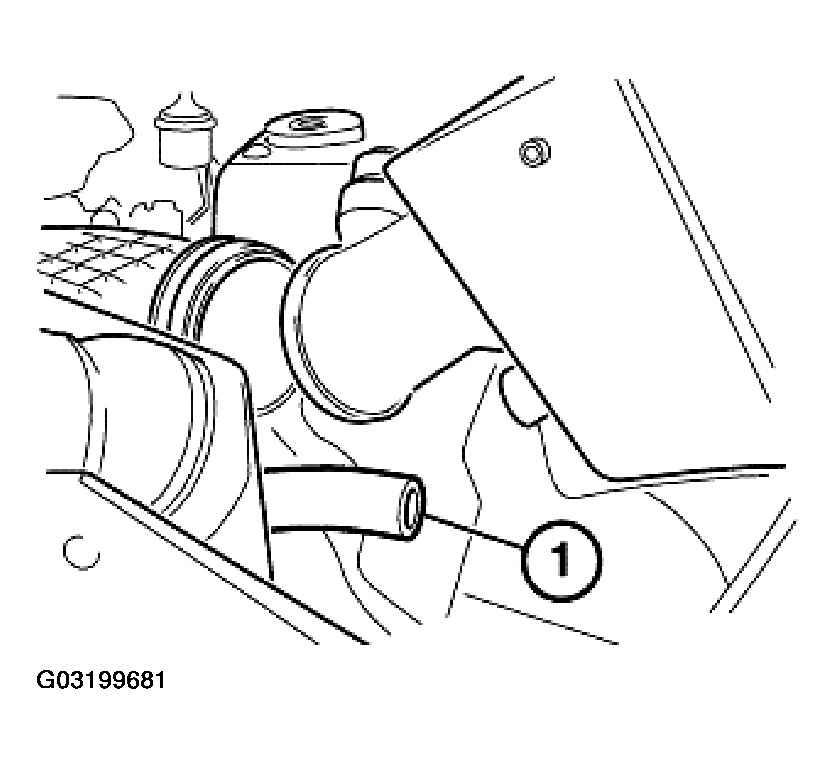

Pull off air hose (1).

Fig 1: Pulling Off Air Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Remove suction-filter housing.

Remove heat-protection plate.

Disconnect plug-in connection (1).

Fig 2: Removing Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew and remove oil-pressure switch.

NOTE: Oil-pressure switch on oil-filter base.

Tightening torque, 40 Nm.
