61 31... Replacing all switches and indicator lamps in centre console (Z3 roadster, Z3 coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Unclip shift-lever cover.

Fig 1: Removing Insulation Sheet

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insulation sheet.

Carefully press hazard warning light switch or window regulator switch downwards to remove from trim.

Disconnect connector.

Remove radio finisher or, if necessary, radio, refer to 65 11 030

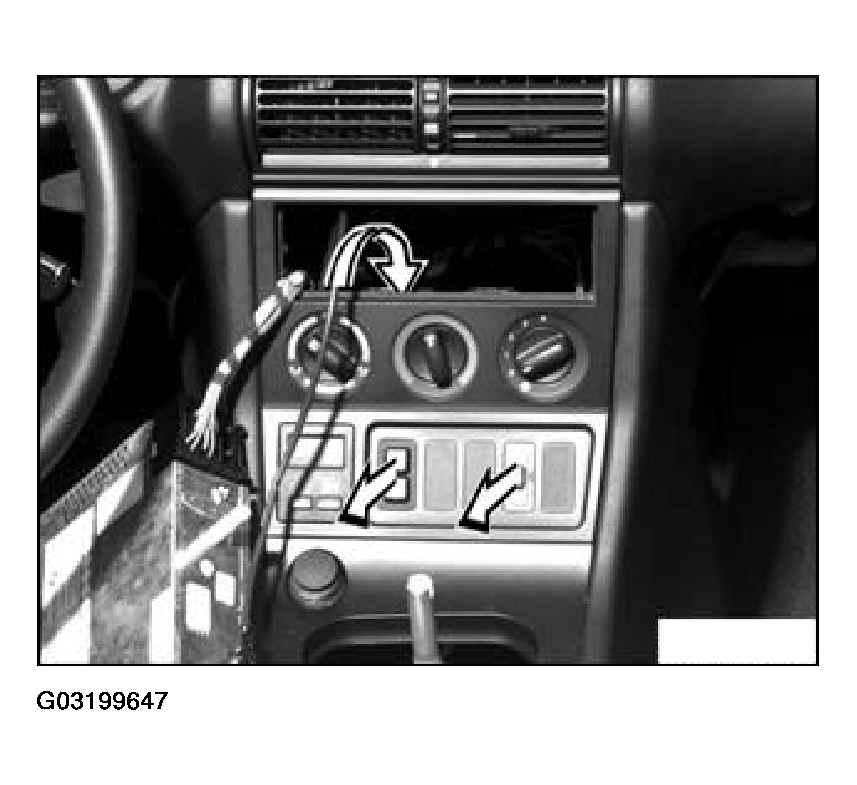

Push a/c switch or indicator lamp forwards through radio aperture to unclip and remove connector.

Fig 2: Identifying A/C Switch Or Indicator Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
